Removal [06/2017 - ]: Procedure

  1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [06/2017 - ]

  2. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 5

  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 6

  4. REMOVE LOWER INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 10

  5. REMOVE ROOM TEMPERATURE SENSOR (COOLER THERMISTOR)

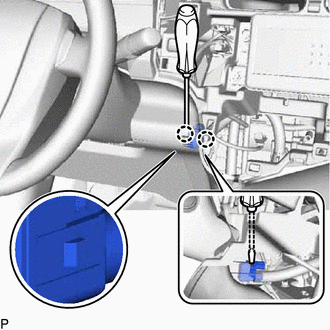

    1. Insert a screwdriver into the position shown in the illustration to disengage the 2 claws.
      GTY343800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

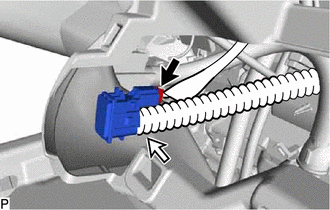

    2. Disconnect the connector and aspirator and remove the room temperature sensor (cooler thermistor).
      GTY343801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
