Removal [11/2015 - 06/2017]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  2. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 5

  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 6

  4. REMOVE LOWER INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 10

  5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

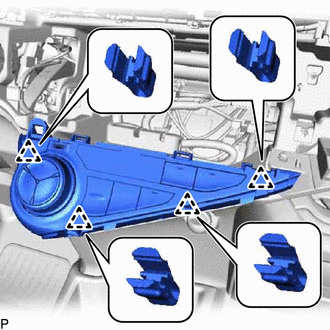

    1. Disengage the 4 clips.
      GTY472207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the air conditioning control assembly.
