Removal [06/2017 - ]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

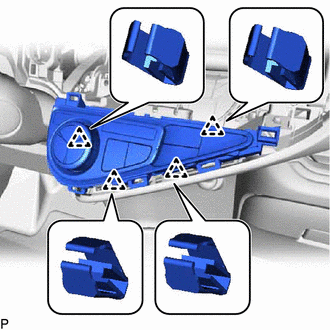

    1. Disengage the 4 clips.
      GTY752377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the air conditioning control assembly.
