Installation [12/2013 - ]: Procedure

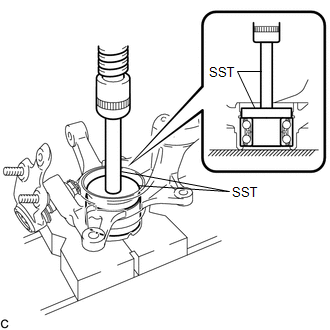

1. Using SST and a press, install a new front axle hub bearing to the steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09950-60020
     1. 09951-00810
   • SST: 09950-70010
     1. 09951-07100

1. Install the front disc brake dust cover sub-assembly to the steering knuckle with the 4 bolts.

   Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

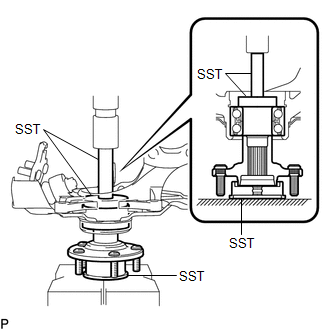

1. Using SST and a press, install the front axle hub sub-assembly to the steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09608-32010
   • SST: 09950-60010
     1. 09951-00610
   • SST: 09950-70010
     1. 09951-07100

1. Using snap ring pliers, install a new front axle hub hole snap ring.

1. Set a new front No. 1 wheel bearing dust deflector to the steering knuckle while aligning the cutout for the speed sensor in the front No. 1 wheel bearing dust deflector with the hole of the steering knuckle.
2. Using SST and a hammer, install the front No. 1 wheel bearing dust deflector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09316-60011
     1. 09316-00011
   • SST: 09608-32010
   • SST: 09950-60010
     1. 09951-00500
     2. 09952-06010
   • SST: 09950-60020
     1. 09951-00810

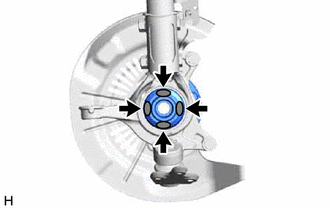

1. Apply 0.1 to 0.3 g (0.00353 to 0.0105 oz) of Toyota Body Grease W to each of the 4 areas shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Toyota Body Grease W

   NOTE:

   Do not apply grease to the serrations or installation hole of the front speed sensor.

2. Install the front axle assembly to the front shock absorber assembly with the 2 bolts and 2 nuts.

   Torque: 290 N*m (2957 kgf*cm, 214 ft.*lbf)

   NOTE:

   When installing the nuts, keep the bolts from rotating.

   HINT:

   The bolts can be installed in either direction, however, make sure that they are both installed in the same direction.

1. Align the matchmarks and install the front drive shaft assembly to the front axle hub sub-assembly.

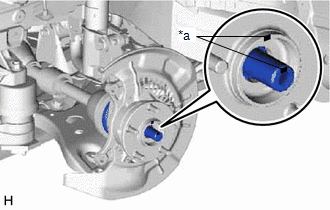

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   NOTE:

   Be careful not to damage the drive shaft boot or speed sensor rotor.

1. Connect the front lower No. 1 suspension arm sub-assembly to the front lower ball joint assembly with the bolt and 2 nuts.

   Torque: 92 N*m (938 kgf*cm, 68 ft.*lbf)

for 2WD: Refer to PROCEDURE - Step 11 , or refer to PROCEDURE - Step 12

for AWD: Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 12

Refer to PROCEDURE - Step 1

See step  7

1. Clean the threaded parts on the front drive shaft assembly and a new front axle shaft nut using non-residue solvent.
   NOTE:

   • Be sure to perform this work even when using a new front drive shaft assembly.
   • Keep the threaded parts free of oil and foreign matter.
2. Using a 30 mm socket wrench, install the front axle shaft nut.

   Torque: 294 N*m (2998 kgf*cm, 217 ft.*lbf)

   NOTE:

   Stake the nut after inspecting for looseness and runout in the following steps.

   HINT:

   Keep depressing the brake pedal to prevent the front drive shaft from rotating.

See step  2

Refer to PROCEDURE - Step 12

See step  4

See step  5

Refer to PROCEDURE - Step 1

See step  7

1. Install the front speed sensor to the steering knuckle with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   Do not twist the front speed sensor when installing it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Sensor Clamp

2. Engage the 2 claws to install the sensor clamp.

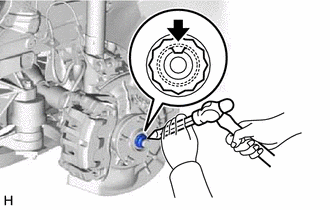

1. Using a chisel and hammer, stake the front axle shaft nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

Refer to ADJUSTMENT [12/2013 - 11/2016] , or refer to ADJUSTMENT [11/2016 - ]

Refer to TEST MODE PROCEDURE [12/2013 - 11/2016] , or refer to TEST MODE PROCEDURE [11/2016 - ]
