Installation [12/2013 - 11/2016]: Procedure
- INSTALL TIE ROD ASSEMBLY LH
- INSTALL TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.
- INSTALL STEERING LINK ASSEMBLY
- Install the steering link assembly to the front frame assembly with the 2 bolts and 2 nuts.
Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)
NOTE:- Make sure to tighten the bolts starting from the steering link assembly pinion shaft side.
- Keep the nut from rotating while turning the bolt because the nut has its own stopper.
- Install the steering link assembly to the front frame assembly with the 2 bolts and 2 nuts.
- INSTALL FRONT STABILIZER BAR
- Install the front stabilizer bar with 2 front stabilizer links, 2 front No. 2 stabilizer brackets and 2 front No. 1 stabilizer bar bushings to the front frame assembly.
- INSTALL FRONT NO. 1 STABILIZER BRACKET LH
Refer to PROCEDURE - Step 5
- INSTALL FRONT NO. 1 STABILIZER BRACKET RH
HINT:
Perform the same procedure as for the LH side.
- INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
Refer to PROCEDURE - Step 22
- CONNECT TIE ROD ASSEMBLY LH
- CONNECT TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.

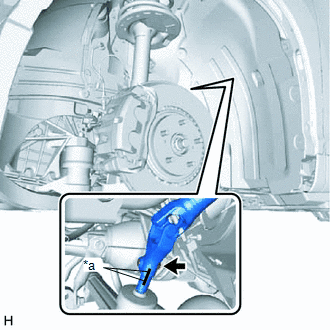

- CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
- INSTALL FRONT WHEELS
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
- INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
Refer to ADJUSTMENT [12/2013 - 11/2016]
- INSPECT STEERING WHEEL CENTER POINT
