Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

Refer to PRECAUTION [12/2013 - 11/2016]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [12/2013 - 11/2016]
REMOVE FAN SHROUD
Refer to REMOVAL [12/2013 - 11/2016]
REMOVE NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE
Refer to PROCEDURE - Step 8
REMOVE V-RIBBED BELT
Refer to REMOVAL [12/2013 - 11/2016]

REMOVE GENERATOR ASSEMBLY

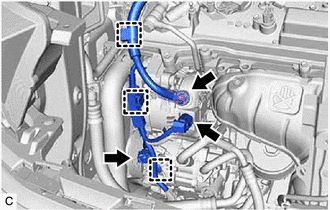

Open the terminal cap.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the nut and disconnect the wire harness from terminal B.
Disconnect the generator assembly connector from the generator assembly.
Disconnect the compressor and magnetic clutch connector.
Disconnect the 3 wire harness clamps.

Remove the 2 bolts and then disconnect the generator assembly bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts and generator assembly.

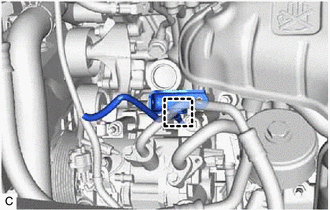

Disconnect the wire harness clamp and then remove the generator assembly bracket.

Remove the bolt and wire harness clamp bracket.
