Replacement [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 8

  2. SEPARATE FRONT FENDER LINER LH

    Refer to PROCEDURE - Step 11

  3. REMOVE FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 13

  4. DRAIN AUTOMATIC TRANSAXLE FLUID
    1. Remove the refill plug and gasket from the automatic transaxle assembly.
      GTY423377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transaxle oil pan sub-assembly.
      GTY431165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the automatic transaxle oil pan sub-assembly.
      GTY453270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transmission Oil Filler Tube
      *a Hexagon Socket Wrench
      *b Overflow Plug Hole
    4. Drain the automatic transaxle fluid from the automatic transaxle assembly.
    5. Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the automatic transaxle oil pan sub-assembly.
      GTY453269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transmission Oil Filler Tube
      *a Hexagon Socket Wrench
      *b Overflow Plug Hole

      Torque: 1.7 N*m (17 kgf*cm, 15 in.*lbf)

    6. Using a 6 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the automatic transaxle oil pan sub-assembly.
      GTY431165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Reuse the old gasket as the overflow plug will be removed again to adjust the fluid level.

    7. Temporarily install the gasket and refill plug to the automatic transaxle assembly.
      GTY423377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Reuse the old gasket as the refill plug will be removed again to adjust the fluid level.

  5. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2016]

  6. REMOVE REAR ENGINE MOUNTING BRACKET

    Refer to PROCEDURE - Step 14

  7. REMOVE FRONT DRIVE SHAFT OIL SEAL LH
    1. Using SST, remove the front drive shaft oil seal LH from the automatic transaxle assembly.
      GTY427790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the transaxle case sub-assembly.

  8. REMOVE FRONT DRIVE SHAFT OIL SEAL RH
    1. Using SST, remove the front drive shaft oil seal RH from the automatic transaxle assembly.
      GTY450499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the transaxle housing.

  9. INSTALL FRONT DRIVE SHAFT OIL SEAL LH

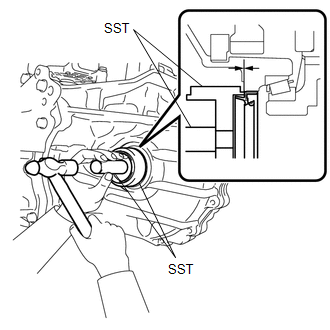

    1. Using SST and a hammer, install a new front drive shaft oil seal LH to the automatic transaxle assembly.
      GTY453645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09316-10010
      • SST: 09950-70010
        1. 09951-07100

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the front drive shaft oil seal LH is installed in the correct direction.
      • Do not damage the front drive shaft oil seal LH lip.
    2. Coat the lip of the front drive shaft oil seal LH with MP grease.
  10. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

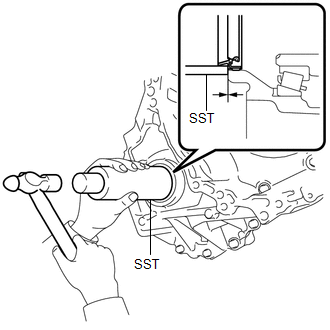

    1. Using SST and a hammer, install a new front drive shaft oil seal RH to the automatic transaxle assembly.
      GTY442131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09316-60011
        1. 09316-00011

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the front drive shaft oil seal RH is installed in the correct direction.
      • Do not damage the front drive shaft oil seal RH lip.
    2. Coat the lip of the front drive shaft oil seal RH with MP grease.
  11. INSTALL REAR ENGINE MOUNTING BRACKET

    Refer to PROCEDURE - Step 10

  12. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Refer to INSTALLATION [12/2013 - 11/2016]

  13. ADD AUTOMATIC TRANSAXLE FLUID

    Refer to ADJUSTMENT [12/2013 - 11/2016]

  14. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 90

  15. INSTALL FRONT FENDER LINER LH

    Refer to PROCEDURE - Step 92

  16. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 96
