Removal [08/2015 - ]

REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL [08/2015 - ] - Step 1
REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
Refer to REMOVAL [08/2015 - ]
REMOVE FRONT WHEEL LH
REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
HINT:

Use the same procedure as for the RH side. Refer to REMOVAL [08/2015 - ] - Step 2 .
REMOVE FRONT FENDER LINER LH
HINT:

Use the same procedure as for the RH side. Refer to REMOVAL [08/2015 - ] - Step 3 .
REMOVE FRONT DOOR SCUFF PLATE LH . Refer to REMOVAL [08/2015 - ] - Step 3
REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH . Refer to REMOVAL [08/2015 - ] - Step 4
DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY . Refer to REMOVAL [08/2015 - ] - Step 11
REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
1. Disconnect the hood lock control cable assembly and remove the hood lock control lever sub-assembly.

  Fig 1: Identifying Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD LOCK ASSEMBLY
1. Using a screwdriver, remove the hood lock nut cap.

  Fig 2: Identifying Protective Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *a Protective Tape

  HINT:

  Tape the screwdriver tip before use.
2. w/ Engine Hood Courtesy Switch:
  1. Disconnect the connector.

    Fig 3: Identifying Engine Hood Courtesy Switch Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and hood lock bolt.

  Fig 4: Locating Bolts And Hood Lock Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Hood Lock Bolt
4. Disconnect the hood lock control cable assembly and remove the hood lock assembly.

  Fig 5: Locating Hood Lock Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

Using a screwdriver, disengage 5 clamps and hood cable grommet as shown in the illustration.

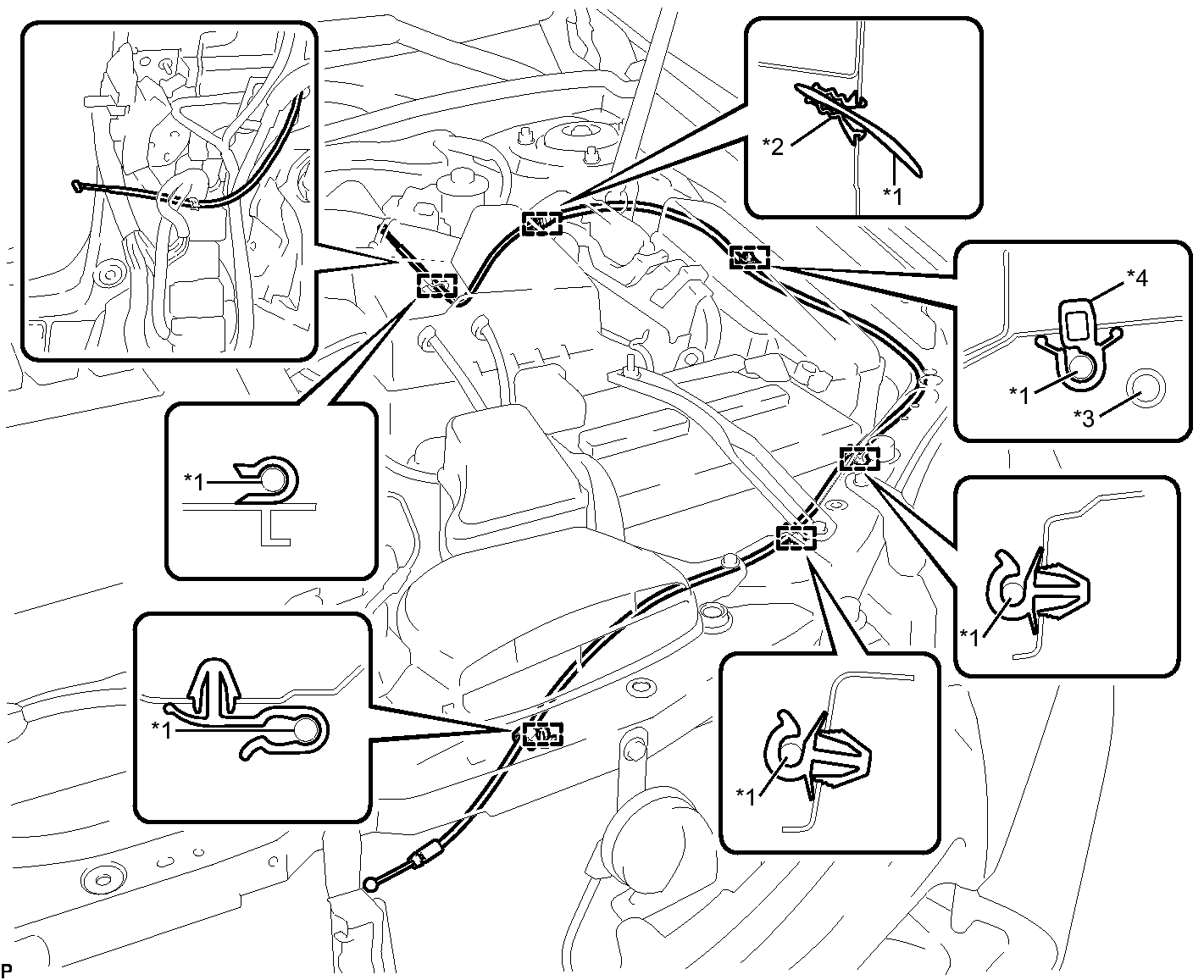

Fig 6: Identifying Hood Lock Control Cable, Hood Cable Grommet, Washer Hose And Hood Lock Control Cable Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Hood Lock Control Cable	*2	Hood Cable Grommet
*3	Washer Hose	*4	Hood Lock Control Cable Clamp

HINT:

Tape the screwdriver tip before use.

Pull the hood lock control cable assembly from the engine compartment and remove it.
