Removal [08/2015 - ]

REMOVE COOL AIR INTAKE DUCT SEAL
1. Remove the 9 clips and cool air intake duct seal.

  Fig 1: Clips And Cool Air Intake Duct Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT BUMPER ASSEMBLY

Apply protective tape around the front bumper assembly as shown in the illustration.

Fig 2: Protective Tape
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION

Protective Tape
Remove the 7 screws.

Fig 3: Identifying Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

Fig 4: Identifying Pin Hold Clip

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Pin Hold Clip
*a	90°

HINT:

Use the same procedure for the RH side and LH side.

Remove the clip.
HINT:

Use the same procedure for the RH side and LH side.

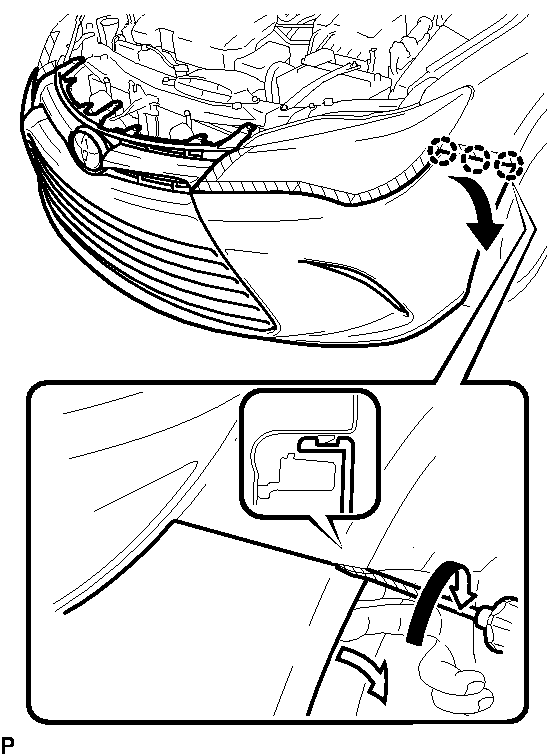

Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws as shown in the illustration.

Fig 5: Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION

Protective Tape

HINT:

Use the same procedure for the RH side and LH side.
w/ Intuitive Parking Assist System:
1. Pull back the side of the front bumper assembly and disconnect the 2 No. 1 ultrasonic sensor connectors.
  NOTE:
  Do not apply excessive force when pulling back the front bumper assembly.
Pull back the side of the front bumper assembly and disconnect the 2 front turn signal light connectors.
NOTE:
Do not apply excessive force when separating the front bumper assembly.
Using a clip remover, remove the clip and 2 hood center cushions.

Fig 6: Clip And Hood Center Cushions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the front bumper assembly as shown in the illustration.

Fig 8: Front Bumper Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
