Installation [10/2014 - ]: Procedure

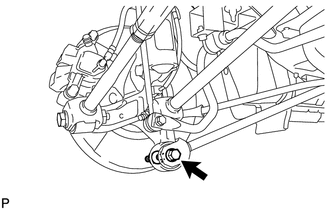

1. Temporarily install the rear strut rod assembly (rear) with the bolt and nut.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   HINT:

   Insert the bolt from the inside of the vehicle.

2. Support the rear axle carrier sub-assembly with a jack and a wooden block.
3. Connect the rear strut rod assembly (front) with the 2 bolts.

Refer to PROCEDURE - Step 10

1. Fully tighten the bolt (rear).

   Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

2. Fully tighten the 2 bolts (front).

   Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)

1. Connect the No. 3 parking brake cable assembly with the bolt.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)
