Removal [10/2014 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. REMOVE NO. 2 FLOOR UNDER COVER

    See step  2

  3. REMOVE NO. 1 FLOOR UNDER COVER (for RH Side)

    See step  3

  4. SEPARATE REAR NO. 1 SUSPENSION ARM ASSEMBLY

    Refer to PROCEDURE - Step 10

  5. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

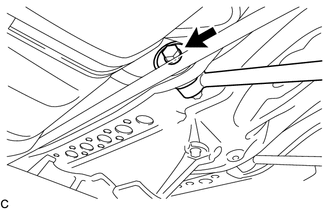

    1. Remove the bolt and rear No. 1 suspension arm assembly from the rear suspension member sub-assembly.
      GTY374966Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
