Removal [10/2014 - ]: Procedure

See step  2

Refer to PROCEDURE - Step 13

Refer to PROCEDURE - Step 14

Refer to PROCEDURE - Step 7

See step  6

(Refer to REMOVAL [10/2014 - ] )

HINT:

It is necessary to remove the rear height control sensor sub-assembly when separating the rear No. 2 suspension arm assembly RH.

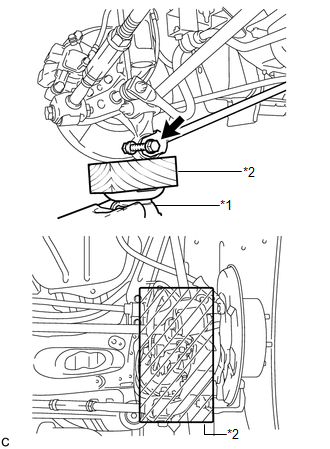

1. Use a jack and wooden block to support the rear axle carrier sub-assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *1	Jack
   *2	Wooden Block

2. Remove the bolt and nut, and separate the rear strut rod assembly (rear side) from the rear axle carrier sub-assembly.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

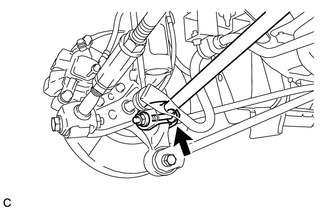

1. Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly (outer side) from the rear axle carrier sub-assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

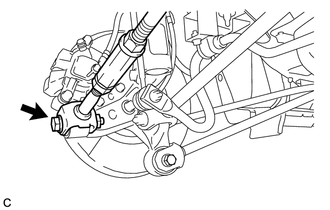

1. Remove the bolt and nut, and separate the rear No. 1 suspension arm assembly (outer side) from the rear axle carrier sub-assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

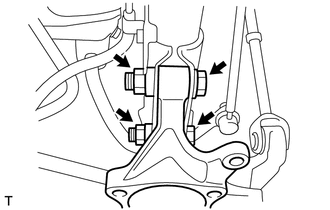

1. Remove the 2 bolts, 2 nuts and rear axle carrier sub-assembly from the rear shock absorber assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   When removing the nuts, keep the bolts from rotating.
