Installation [10/2014 - ]: Procedure
- INSTALL DOOR SIDE AIRBAG SENSOR
- Check that the engine switch is off.
- Check that the cable is disconnected from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

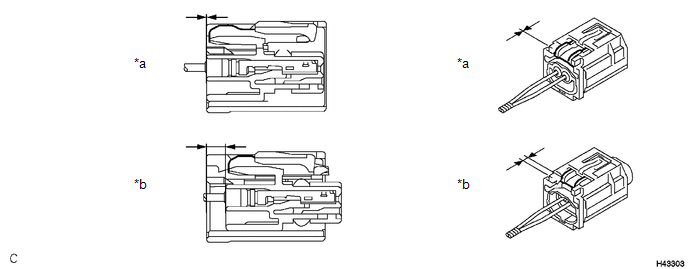

- Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.TEXT IN ILLUSTRATION
*a Incorrect *b Correct - Insert the pin (stopper) into the door hole and install the door side airbag sensor to the front door panel with the bolt.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
NOTE:- If the door side airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
- When installing the door side airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
- Make sure that the pin (stopper) is securely inserted into the door hole.
- Tighten the bolt while holding the door side airbag sensor because the door side airbag sensor pin (stopper) is easily damaged.
- Connect the connector to the door side airbag sensor.NOTE:
When connecting any airbag connector, take care not to damage the airbag wire harness.

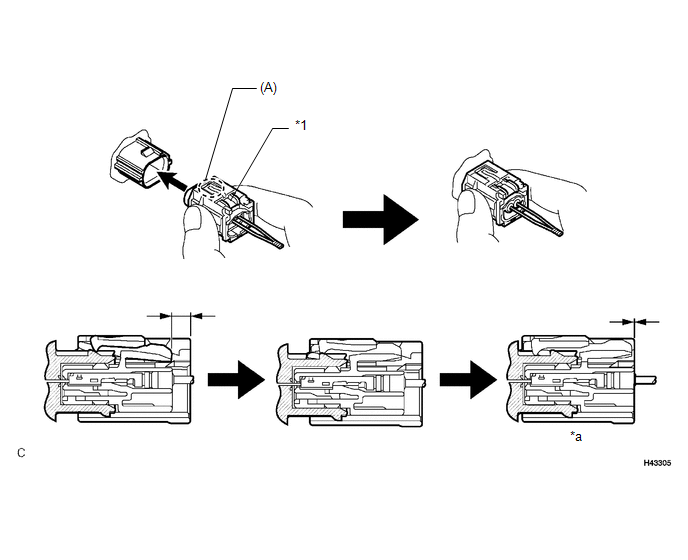

- Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).TEXT IN ILLUSTRATION
*1 White Housing Lock - - *a Connection is completed - - HINT:
When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.
- Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).
- Check that there is no looseness in the installed parts of the door side airbag sensor.
- INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 39
- INSTALL COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL NO. 1 FRONT DOOR STIFFENER CUSHION
Refer to PROCEDURE - Step 41
- INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 42
- INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 43
- INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
Refer to PROCEDURE - Step 44
- INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 45
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] Refer to INITIALIZATION [10/2015 - ] ).
- PERFORM DIAGNOSTIC SYSTEM CHECK
(Refer to DTC CHECK / CLEAR [10/2014 - ] )
- INSPECT SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [10/2014 - ] )
