Reassembly [10/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).
- REPAIR INSTRUCTION
Refer to PROCEDURE - Step 2
- INSTALL NO. 2 BLACK OUT TAPE
Refer to PROCEDURE - Step 3
- INSTALL NO. 1 BLACK OUT TAPE
Refer to PROCEDURE - Step 4
- INSTALL FRONT DOOR UPPER WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 1

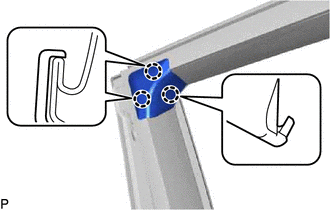

- INSTALL FRONT DOOR REAR WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 2
- INSTALL FRONT DOOR BELT MOULDING ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL FRONT DOOR NO. 2 WEATHERSTRIP

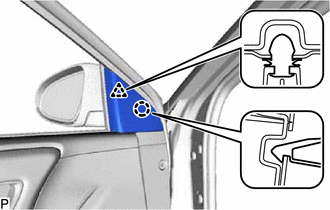

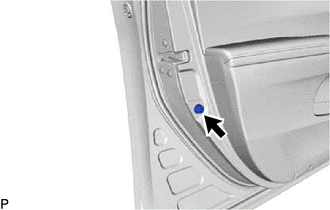

- INSTALL DOOR FRAME GARNISH

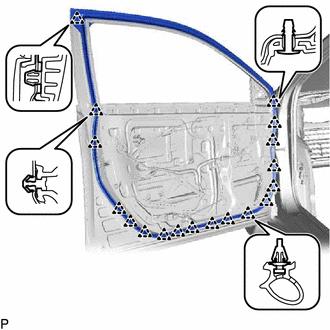

- INSTALL FRONT DOOR WEATHERSTRIP
- INSTALL FRONT DOOR CHECK ASSEMBLY
- Apply MP grease to the sliding areas of the front door check assembly.
- Apply adhesive to the threads of the bolt.
Adhesive
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

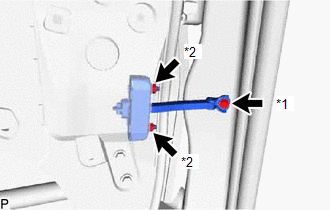

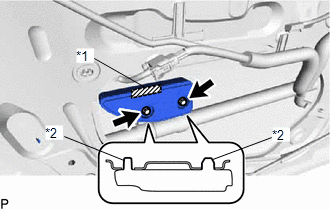

- Install the front door check assembly with the 2 nuts and bolt.TEXT IN ILLUSTRATION
*1 Bolt *2 Nut Bolt
Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
Nut
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- INSTALL FRONT DOOR LOCK OPEN ROD
- INSTALL FRONT SMART DOOR WIRE (w/ Smart Key System)
- INSTALL FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
- Apply MP grease to the sliding parts on the front door outside handle frame sub-assembly.

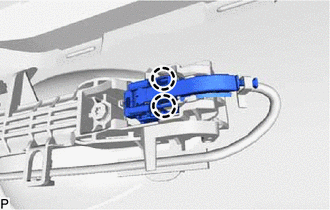

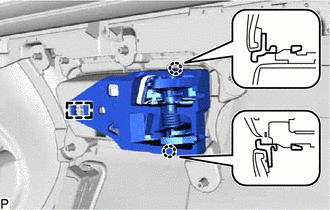

- Engage the claw.TEXT IN ILLUSTRATION

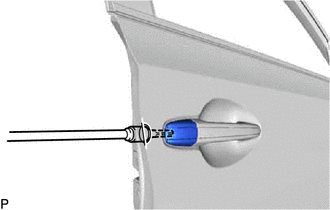

*a Outside *b Inside - Using a T30 "TORX" socket wrench, install the front door outside handle frame sub-assembly with the screw and door handle nut.
Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)
- w/ Smart Key System:
- INSTALL FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
- INSTALL FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY

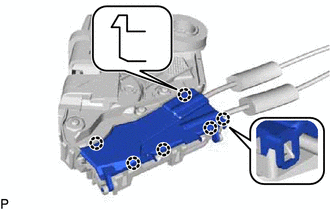

- INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY NOTE:

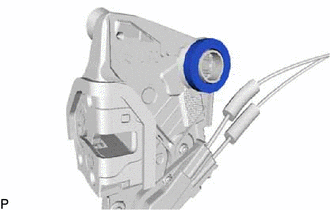

- When reusing the removed front door lock with motor assembly, replace the door lock wiring harness seal on the connector with a new one.
- Do not allow grease or dust to adhere to the door lock wiring harness seal surface of the connector.
- Reusing the door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water intrusion. This may result in a malfunction of the front door lock with motor assembly.
- Apply MP grease to the sliding parts of the front door lock with motor assembly.
- When reusing the front door lock with motor assembly:

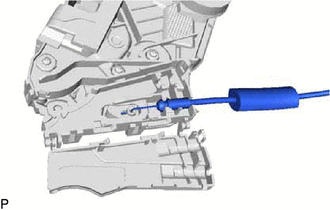

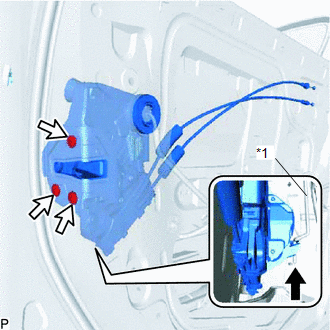

- Insert the front door lock open rod to the front door lock with motor assembly.TEXT IN ILLUSTRATION
*1 Front Door Lock Open Rod - Make sure that the front door lock open rod is securely connected to the front door lock with motor assembly.
- Using a T30 "TORX" socket wrench, install the front door lock with motor assembly with the 3 screws.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
- INSTALL FRONT DOOR REAR OUTSIDE HANDLE PAD
- INSTALL FRONT DOOR FRONT OUTSIDE HANDLE PAD
- INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY

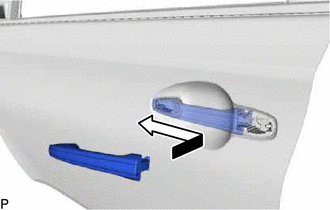

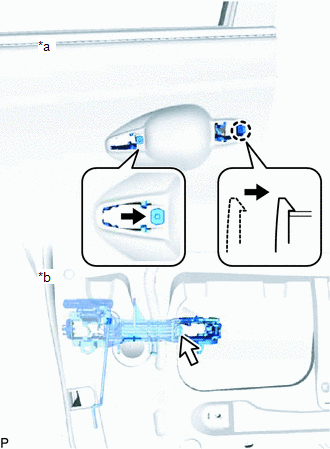

- Insert the front end of the front door outside handle assembly into the front door outside handle frame.
- Insert the rear end of the front door outside handle assembly into the front door outside handle frame, then slide the front door outside handle assembly toward the front of the vehicle to install it.

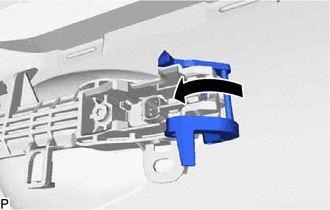

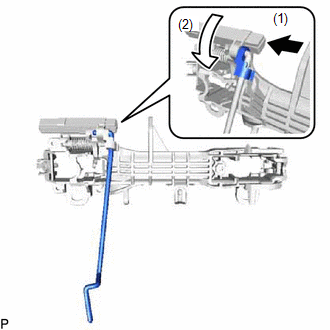

- Move the lever back in the direction indicated by the arrow in the illustration to lock the front door outside handle assembly.
- w/ Smart Key System:
- Insert the front end of the front door outside handle assembly into the front door outside handle frame.

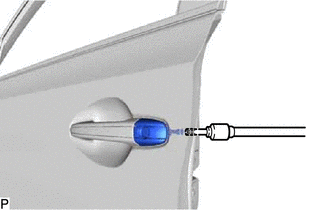

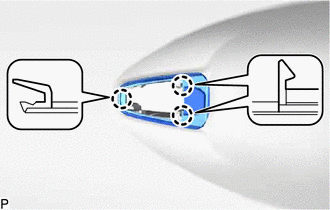

- INSTALL FRONT DOOR OUTSIDE HANDLE COVER (for Driver Side)

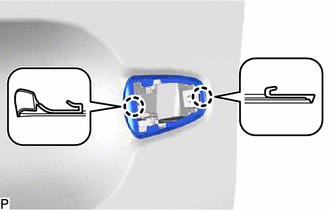

- INSTALL FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)

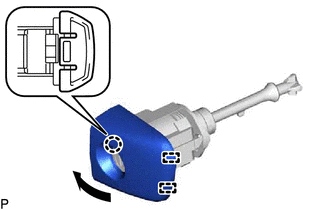

- INSTALL FRONT DOOR OUTSIDE HANDLE COVER WITH LOCK CYLINDER ASSEMBLY (for Driver Side)

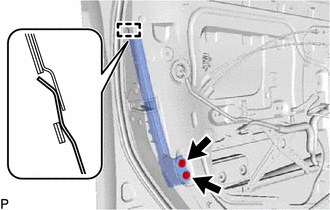

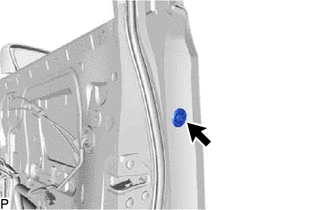

- INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

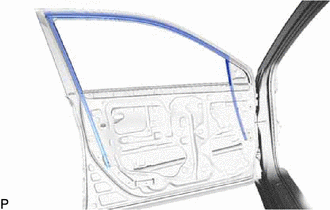

- INSTALL FRONT DOOR GLASS RUN
- INSTALL NO. 2 FRONT DOOR STIFFENER CUSHION

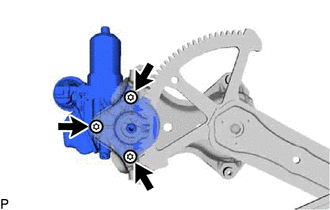

- INSTALL FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY NOTE:
The regulator arm must be below the intermediate position when installing the power window regulator motor.
- INSTALL FRONT DOOR WINDOW REGULATOR ASSEMBLY
- Apply MP grease to the sliding parts of the front door window regulator assembly.
- Install the temporary bolt to the front door window regulator assembly.
- Temporarily install the front door window regulator assembly.TEXT IN ILLUSTRATION

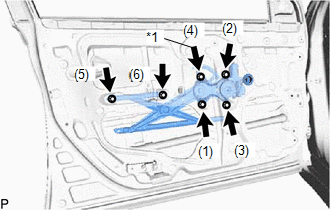

*1 Temporary Bolt - Tighten the temporary bolt and 5 bolts to install the front door window regulator assembly.
HINT:
Tighten the bolts in the order shown in the illustration.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
- Connect the cable to the negative (-) battery terminal.
- Connect the multiplex network master switch assembly and move the front door glass sub-assembly so that the door glass bolts can be seen.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Disconnect the multiplex network master switch assembly.

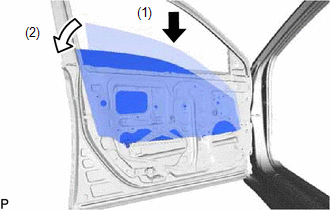

- Insert the front door glass sub-assembly into the front door panel along the front door glass run as indicated by the arrows, in the order shown in the illustration.
- Install the front door glass sub-assembly with the 2 bolts.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Install the grommet.

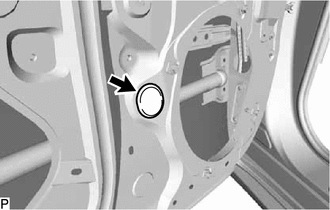

- INSTALL FRONT DOOR SERVICE HOLE COVER

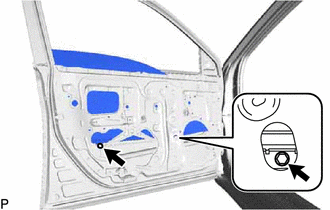

- Apply new butyl tape to the front door panel.

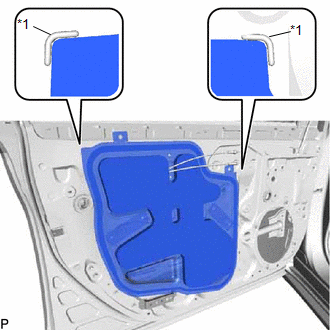

- Pass the front door lock remote control cable assembly and front door inside locking cable assembly through a new front door service hole cover.TEXT IN ILLUSTRATION
*1 Reference Point - Install the front door service hole cover according to the reference points on the front door panel.NOTE:
Securely install the front door service hole cover preventing wrinkles and air bubbles.

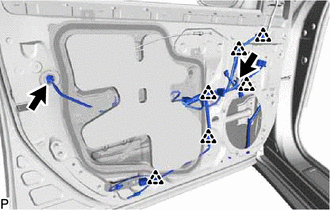

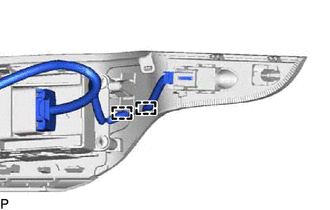

- Engage each clamp.
- Connect the 2 connectors.

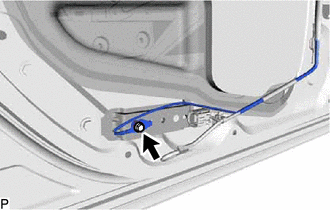

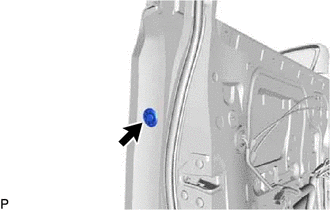

- Install the bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

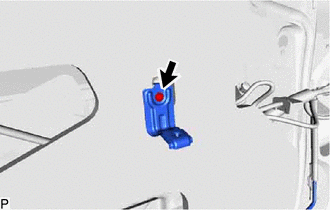

- INSTALL FRONT DOOR TRIM BRACKET
- INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY (w/ Memory)
Refer to PROCEDURE - Step 1
- INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL DOOR SIDE AIRBAG SENSOR
Refer to PROCEDURE - Step 1
- INSTALL SEAT MEMORY SWITCH (w/ Memory)
Refer to PROCEDURE - Step 1
- INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP
- INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
- INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

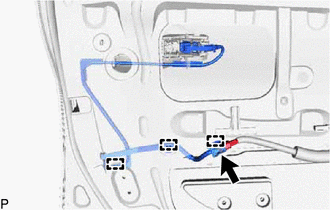

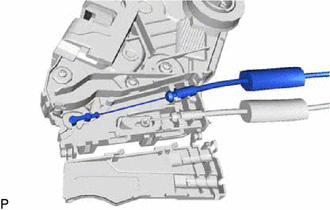

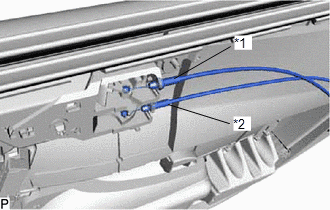

- Connect the front door lock remote control cable assembly and front door inside locking cable assembly.TEXT IN ILLUSTRATION

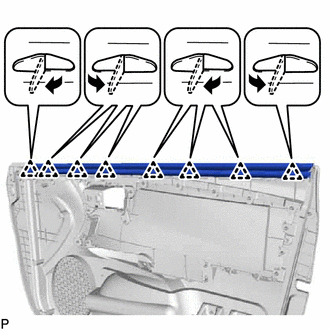

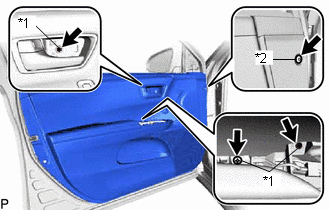

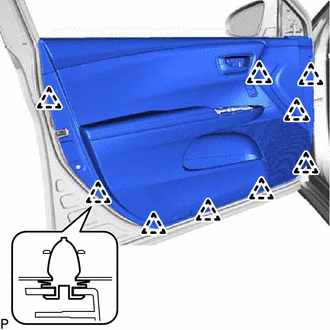

*1 Front Door Inside Locking Cable Assembly *2 Front Door Lock Remote Control Cable Assembly - Engage the 9 clips to install the front door trim board sub-assembly.
- Install the 3 screws and clip.TEXT IN ILLUSTRATION
*1 Screw *2 Clip HINT:
If protective tape has been applied, remove it.
- Connect the front door lock remote control cable assembly and front door inside locking cable assembly.

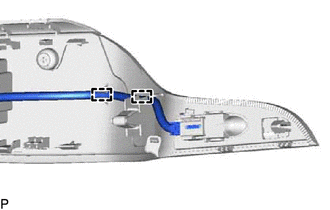

- INSTALL COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL NO. 1 FRONT DOOR STIFFENER CUSHION

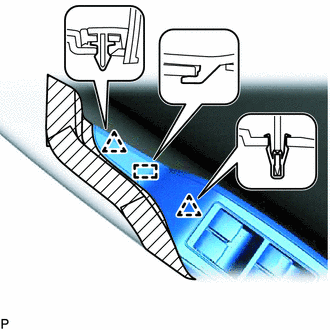

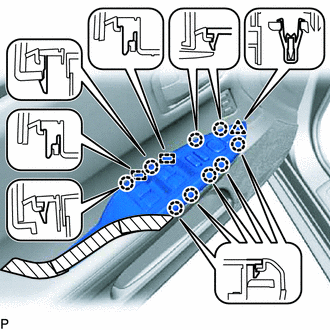

- INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
- INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

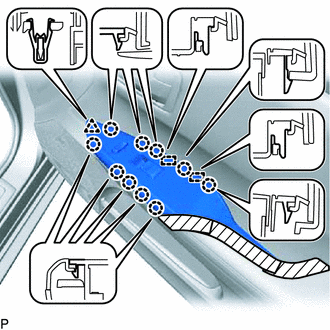

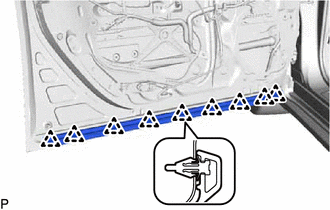

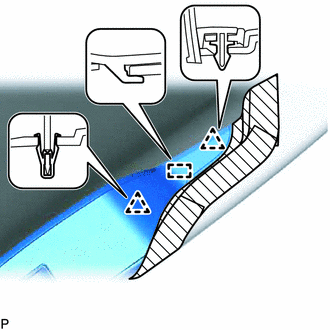

- INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH

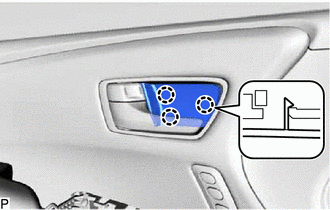

- INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- INITIALIZE POWER WINDOW CONTROL SYSTEM
(Refer to INITIALIZATION [10/2014 - ] )
- INSPECT POWER WINDOW OPERATION
(Refer to OPERATION CHECK [10/2014 - ] )
- INSPECT SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [10/2014 - ] )
