Removal [10/2014 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing (Refer to PRECAUTION [10/2014 - 10/2015] Refer to PRECAUTION [10/2015 - ] ).

    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. REMOVE FRONT CONSOLE BOX

    (Refer to REMOVAL [10/2014 - ] )

  3. DISCONNECT NO. 2 INSTRUMENT PANEL WIRE
    1. Check that the engine switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

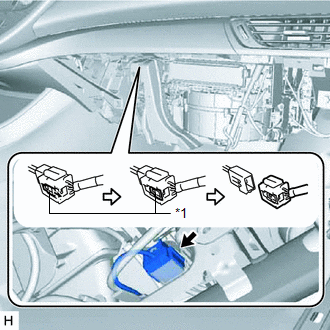

    3. Slide the slider to release the lock, and then disconnect the connector.
      GTY572855Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      *1 Slider
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

  4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 48

  5. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    WARNING:

    When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.

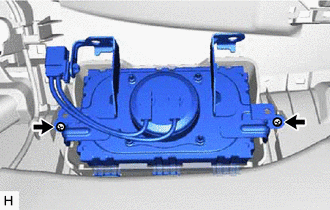

    1. Remove the 2 screws.
      GTY372455Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

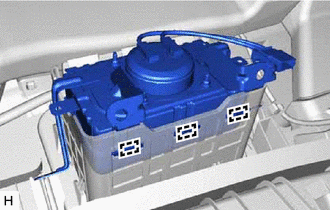

    2. Lean the instrument panel safety pad sub-assembly and disengage the 3 hooks.
      GTY372453Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

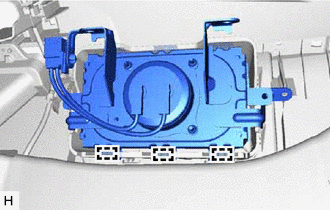

    3. Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly.
      GTY372452Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  6. REMOVE NO. 2 INSTRUMENT PANEL WIRE

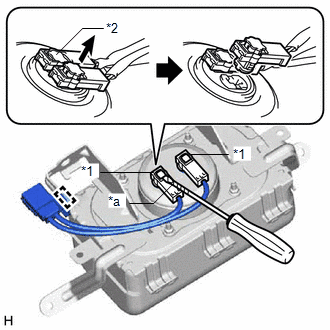

    1. Disengage the clamp.
      GTY541002Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Using a screwdriver with its tip wrapped with protective tape, release the 2 airbag connector locks.
      TEXT IN ILLUSTRATION

      *1 Airbag Connector
      *2 Airbag Connector Lock
      *a Protective Tape
    3. Disconnect the 2 airbag connectors to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.
