Removal [10/2014 - 10/2015]: Procedure

WARNING: This page is about a different car, the 2015 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  3. REMOVE SEAT BELT CONTROL ECU

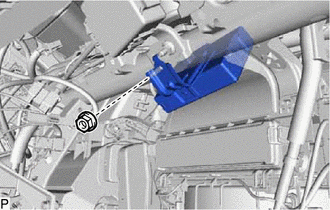

    1. Remove the nut.
      GTY379591Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Disconnect the 2 connectors to remove the seat belt control ECU.
      GTY380894Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
