Removal [10/2014 - ]: Procedure

(Refer to REMOVAL [10/2014 - ] )

Refer to PROCEDURE - Step 3

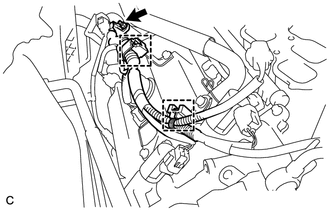

1. Remove the nut.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Disconnect the 2 harness clamps.
3. Disconnect the 6 ignition coil assembly connectors.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. Remove the 6 bolts and 6 ignition coil assemblies.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

1. Remove the 6 spark plugs.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.
