Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
  2. REMOVE ENGINE UNDER COVER RH
  3. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    Refer to PROCEDURE - Step 12

  4. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Front Side)

    See step  7

  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

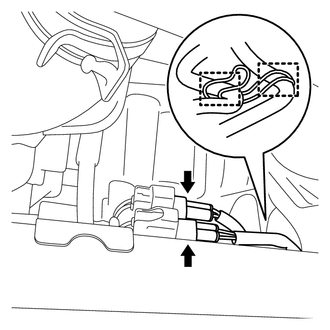

    1. Disconnect the 2 wire harnesses from the clamp.
      GTY546718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 heated oxygen sensor connectors.
    3. Remove the 2 bolts and No. 1 exhaust pipe support bracket (for Rear Side).
      GTY318920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

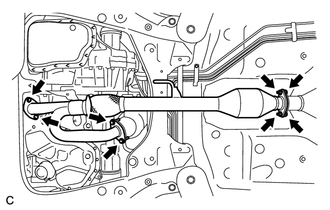

    4. Remove the 4 bolts, 4 nuts and front exhaust pipe assembly (TWC: Rear Catalyst).
      GTY318922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 3 gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst).
  6. REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 5

  7. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

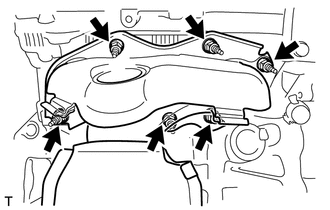

    1. Using a 12 mm deep socket wrench, remove the 6 nuts and exhaust manifold sub-assembly RH (TWC: Front Catalyst).
      GTY318679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the cylinder head sub-assembly.
      GTY318921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE AIR FUEL RATIO SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 3

  9. REMOVE NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 9

  10. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 2 exhaust manifold heat insulator.
      GTY317923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 MANIFOLD STAY
    1. Remove the bolt, nut and No. 2 manifold stay.
      GTY143218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)
    1. Using a 12 mm deep socket wrench, remove the 6 nuts and exhaust manifold sub-assembly LH (TWC: Front Catalyst).
      GTY249724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the cylinder head sub-assembly.
      GTY319006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
