Installation [10/2014 - ]: Procedure

1. Set a new gasket to the cylinder head sub-assembly.
2. Temporarily install the exhaust manifold sub-assembly LH (TWC: Front Catalyst) with the 6 nuts.
3. Temporarily install the No. 2 manifold stay with the bolt and nut.
4. Using a 12 mm deep socket wrench, uniformly tighten the 6 nuts in several steps in the order shown in the illustration.

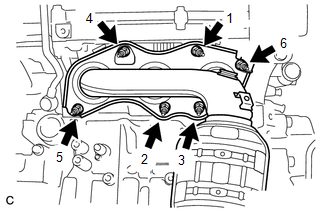

   Fig 1: Exhaust Manifold Sub-Assembly LH Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

1. Tighten the bolt and nut in the order shown in the illustration.

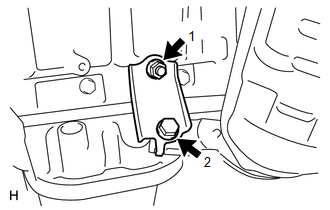

   Fig 2: No. 2 Manifold Stay Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

1. Install the No. 2 exhaust manifold heat insulator with the 3 bolts.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

Refer to PROCEDURE - Step 13

Refer to PROCEDURE - Step 3

1. Set a new gasket to the cylinder head sub-assembly.
2. Using a 12 mm deep socket wrench, tighten the 6 nuts in the order shown in the illustration to install the exhaust manifold sub-assembly RH (TWC: Front Catalyst).

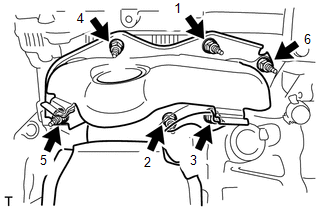

   Fig 3: Exhaust Manifold Sub-Assembly RH Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

Refer to PROCEDURE - Step 1

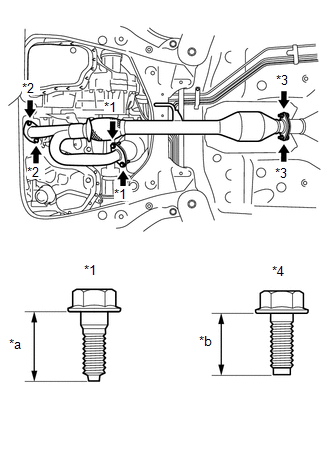

1. Install 3 new gaskets to the front exhaust pipe assembly (TWC: Rear Catalyst).
2. Install the front exhaust pipe assembly (TWC: Rear Catalyst) with the 4 bolts and 4 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Bolt A
   *2	Nut
   *3	Bolt B and Nut
   *4	Bolt B
   *a	39 mm (1.54 in.)
   *b	36 mm (1.42 in.)

   Bolt A

   Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

   Nut

   Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

   Bolt B and Nut

   Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

3. Install the No. 1 exhaust pipe support bracket with the 2 bolts (for Rear Side).

   Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)

4. Connect the 2 heated oxygen sensor connectors.
5. Install the 2 wire harnesses to the clamp.

See step  4

Refer to PROCEDURE - Step 6
