Installation [10/2014 - ]: Procedure

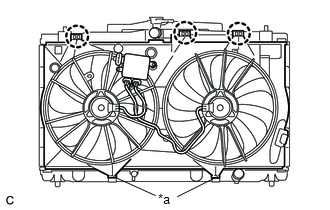

1. Install the fan assembly to the radiator assembly with the 2 guides at the bottom and 3 claws on the top.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *a

   Guide

2. Install the 2 lower radiator supports to the radiator assembly.

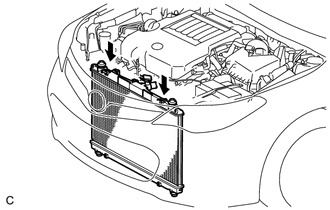

3. Install the radiator assembly with the fan assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   Do not apply excessive force to the condenser assembly or pipe when installing the radiator assembly.

4. Install the condenser assembly with the 4 bolts.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

5. Connect the 3 clamps and connector.

1. Install the 2 radiator support cushions to the radiator assembly.

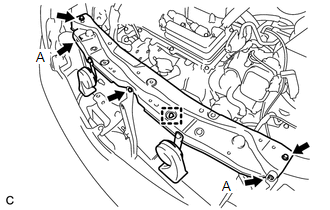

2. Install the upper radiator support with the 5 bolts and connect the hood lock control cable clamp to the upper radiator support.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   HINT:

   Using a 10mm union nut wrench, install the 2 bolts (A).

3. Connect the 3 connectors.

Refer to PROCEDURE - Step 2

1. Connect the No. 2 radiator hose and clamp.

1. Connect the No. 1 radiator hose.

1. Install the radiator reserve tank assembly with the 2 bolts.

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

2. Connect the radiator reserve tank hose.

Refer to PROCEDURE - Step 54

Refer to PROCEDURE - Step 59

Refer to PROCEDURE - Step 55

(Refer to INSTALLATION [10/2014 - 10/2015] Refer to INSTALLATION [10/2015 - ] )

See step  2

Refer to PROCEDURE - Step 1
