On-Vehicle Inspection [10/2014 - ]: Procedure

See step  2

Refer to PROCEDURE - Step 13

Refer to PROCEDURE - Step 14

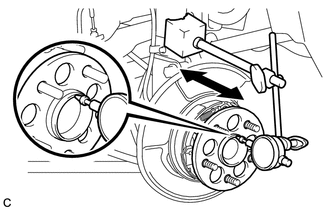

1. Using a dial indicator, check for looseness near the center of the rear axle hub and bearing assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   Maximum looseness

   0.05 mm (0.00196 in.)

   NOTE:

   • Ensure that the dial indicator is set perpendicular to the measurement surface.
   • Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

   If the looseness exceeds the maximum, replace the rear axle hub and bearing assembly.

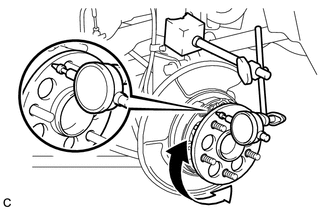

1. Using a dial indicator, check for runout on the surface of the rear axle hub outside the rear axle hub bolts.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   Maximum runout

   0.07 mm (0.00275 in.)

   NOTE:

   • Ensure that the dial indicator is set perpendicular to the measurement surface.
   • Make sure to install the tip of the dial indicator towards the outside of the rear axle hub bolt.
   • Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

   If the runout exceeds the maximum, replace the rear axle hub and bearing assembly.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

See step  9

(Refer to ADJUSTMENT [10/2014 - ] )

Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)
