Removal [10/2014 - ]: Procedure

REMOVE REAR WHEEL
DRAIN BRAKE FLUID
NOTE:
If brake fluid leaks onto any painted surface, immediately wash it off.

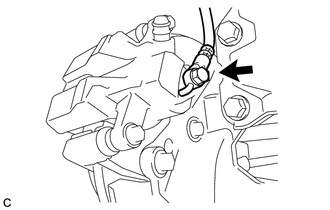

SEPARATE REAR FLEXIBLE HOSE

Remove the union bolt and gasket, and separate the rear flexible hose from the rear disc brake cylinder assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

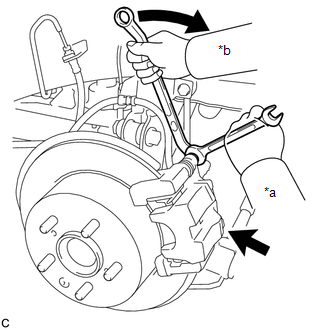

REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY

Hold the rear disc brake cylinder slide pin, and remove the 2 bolts and rear disc brake cylinder assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Hold
*b	Turn

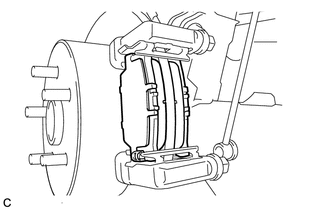

REMOVE REAR DISC BRAKE PAD

Remove the 2 rear disc brake pads with rear disc brake anti-squeal shim kit from the disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

Remove the rear disc brake anti-squeal shim from each rear disc brake pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the rear disc brake pad wear indicator plate from each rear disc brake pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE PAD SUPPORT PLATE

Remove the 2 rear disc brake pad support plates from the disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN (for Upper Side)

Remove the rear disc brake cylinder slide pin from the disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN (for Lower Side)

Remove the rear disc brake cylinder slide pin from the disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE CYLINDER SLIDE BUSHING

Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bushing from the rear disc brake cylinder slide pin (for lower side).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Protective Tape

NOTE:

Do not damage the rear disc brake cylinder slide pin (for lower side).

REMOVE REAR DISC BRAKE BUSHING DUST BOOT

Remove the 2 rear disc brake bushing dust boots from the disc brake cylinder mounting.

REMOVE DISC BRAKE CYLINDER MOUNTING

Remove the 2 bolts and disc brake cylinder mounting.

REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
1. Remove the parking brake shoe adjusting hole plug.

REMOVE REAR DISC

Put matchmarks on the rear disc and the rear axle hub.

TEXT IN ILLUSTRATION

Matchmark

Release the parking brake and remove the rear disc.

HINT:

If the disc cannot be removed easily, use a screwdriver to turn the shoe adjuster as shown in the illustration in order to contract the parking brake shoes.
