Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3

  2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 4

  3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 5

  4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 6

  5. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

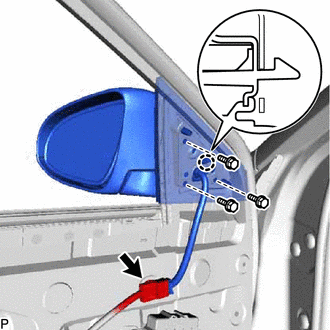

    1. Disconnect the connector.
      GTY362293Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Remove the 3 screws.
    3. Disengage the claw and remove the outer rear view mirror assembly.
