Removal [10/2014 - ]: Procedure

REMOVE COURTESY LIGHT ASSEMBLY

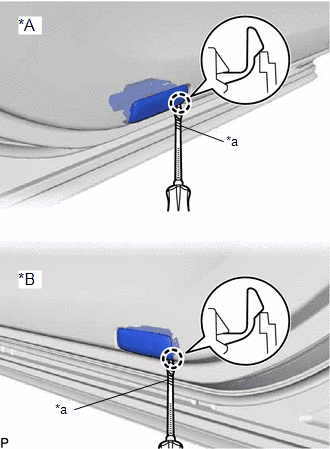

Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

TEXT IN ILLUSTRATION

*A	for LH Side
*B	for RH Side
*a	Protective Tape

Disconnect the connector to remove the courtesy light assembly.

REMOVE COURTESY LIGHT BULB

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the courtesy light housing with the courtesy light cover as shown in the illustration.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

*a	Protective Tape

Remove the courtesy light cover from the courtesy light housing as shown in the illustration.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Remove the courtesy light bulb from the courtesy light housing.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
