Reassembly [10/2014 - ]: Procedure

INSTALL REAR LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 1
INSTALL REAR LIGHT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL LICENSE PLATE LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 4 . Refer to PROCEDURE - Step 1
INSTALL LICENSE PLATE LIGHT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR TELEVISION CAMERA ASSEMBLY (w/ Rear Monitor)
Refer to PROCEDURE - Step 1
INSTALL LUGGAGE ELECTRICAL KEY SWITCH
See step 1
INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
INSTALL LUGGAGE COMPARTMENT DOOR SIDE MOULDING LH
Refer to PROCEDURE - Step 5 . Refer to PROCEDURE - Step 2
INSTALL LUGGAGE COMPARTMENT DOOR SIDE MOULDING RH
HINT:

Use the same procedure as for the LH side.
INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
Refer to PROCEDURE - Step 1

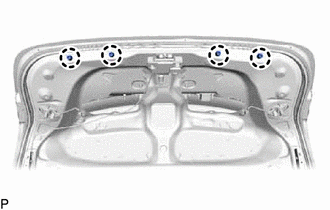

INSTALL LUGGAGE COMPARTMENT DOOR PANEL CUSHION

Engage the 4 claws to install the 4 new luggage compartment door panel cushions.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

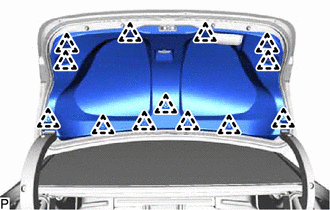

INSTALL LUGGAGE COMPARTMENT DOOR COVER

Install the luggage compartment door cover with the 13 clips.

ADJUST REAR TELEVISION CAMERA OPTICAL AXIS (CAMERA POSITION SETTINGS) (w/ Parking Assist Monitor System)
(Refer to CALIBRATION [10/2014 - ] )
