Installation [10/2014 - 10/2015]: Procedure

  1. INSTALL LICENSE PLATE LIGHT BULB
    1. Install the license plate light bulb.
  2. INSTALL LICENSE PLATE LIGHT LENS

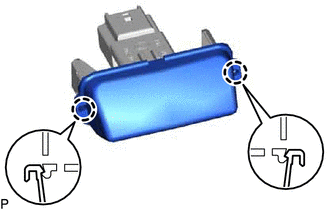

    1. Engage the 2 claws to install the license plate light lens.
      GTY367208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL LICENSE PLATE LIGHT PACKING
    1. Install a new license plate light packing.
  4. INSTALL LICENSE PLATE LIGHT ASSEMBLY
    1. Engage the 2 claws to install the license plate light assembly.
    2. Connect the connector.
  5. INSTALL LUGGAGE COMPARTMENT DOOR SIDE MOULDING

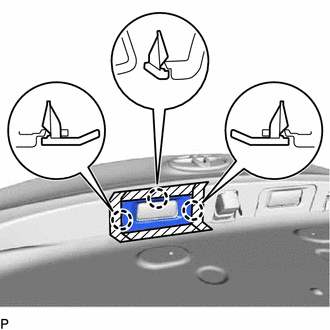

    1. Engage the 3 claws to install the luggage compartment door side moulding.
      GTY367209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
