Removal [10/2014 - ]: Procedure

  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  3. REMOVE LUGGAGE DOOR OPENING SWITCH ASSEMBLY (LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY)

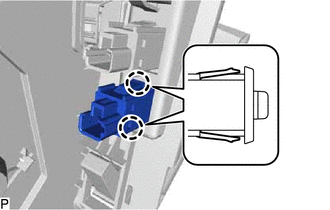

    1. Disengage the 2 claws to remove the luggage door opening switch assembly (luggage door opening cancel switch assembly).
      GTY363490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
