Reassembly [10/2014 - ]: Procedure

  1. INSTALL HOOD SUPPORT ASSEMBLY LH

    See step  1

  2. INSTALL HOOD SUPPORT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

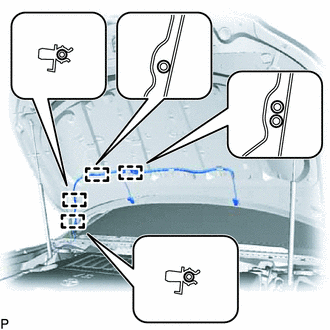

  3. CONNECT WASHER HOSE ASSEMBLY
    1. Engage the 4 clamps to connect the washer hose assembly.
      GTY582684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

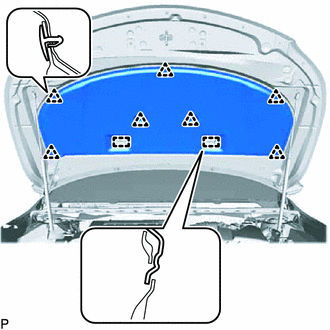

  7. INSTALL HOOD INSULATOR
    1. Engage the 2 guides.
      GTY582683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hood insulator with the 7 new clips.

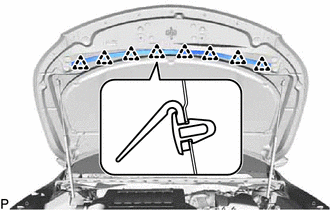

  8. INSTALL HOOD TO RADIATOR SUPPORT SEAL
    1. Engage the 8 clips to install the hood to radiator support seal.
      GTY582680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
