On-Vehicle Inspection [10/2014 - ]: Procedure
- INSPECT WASHER NOZZLE SUB-ASSEMBLY
- Operate the washer nozzle sub-assembly and check the position that the washer fluid hits the windshield.
Standard

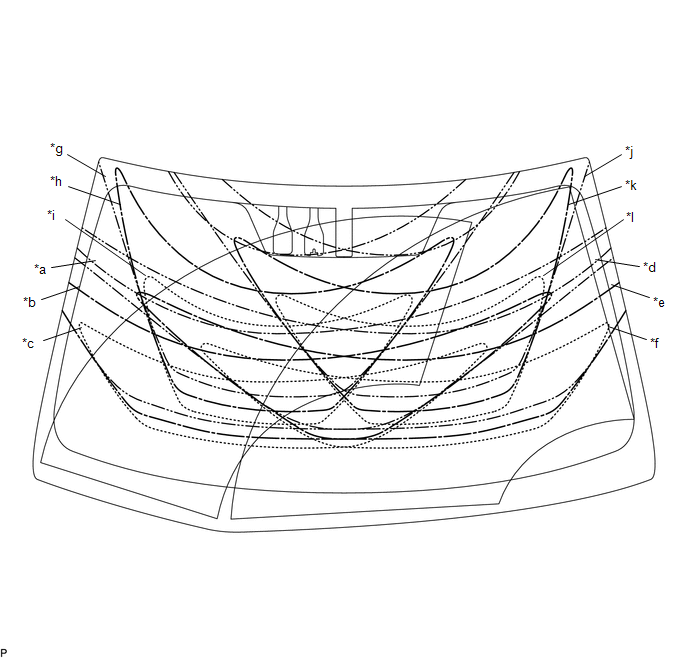

Washer fluid hits the windshield in the areas shown in the illustration.
TEXT IN ILLUSTRATION*a Passenger Side Lower Maximum Spray *b Passenger Side Lower Nominal Spray *c Passenger Side Lower Minimum Spray *d Driver Side Lower Maximum Spray *e Driver Side Lower Nominal Spray *f Driver Side Lower Minimum Spray *g Passenger Side Upper Maximum Spray *h Passenger Side Upper Nominal Spray *i Passenger Side Upper Minimum Spray *j Driver Side Upper Maximum Spray *k Driver Side Upper Nominal Spray *l Driver Side Upper Minimum Spray HINT:
If the result is not as specified, replace the washer nozzle sub-assembly.
- Operate the washer nozzle sub-assembly and check the position that the washer fluid hits the windshield.
