Adjustment [10/2014 - ]: Procedure

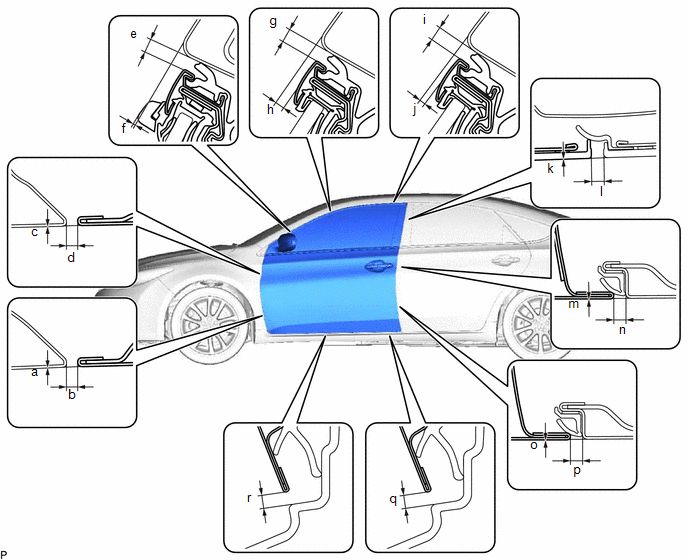

1. Check that the clearance measurements of areas a through r are within each standard range.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   STANDARD CLEARANCE



   Area	Measurement	Area	Measurement
   A	0 mm	B	3.8 mm (0.15 in.)
   c	0 mm	d	3.8 mm (0.15 in.)
   E	3.35 to 6.35 mm (0.132 to 0.25 in.)	F	-0.7 to 2.3 mm (-0.0276 to 0.0906 in.)
   G	3.35 to 6.35 mm (0.132 to 0.25 in.)	H	1.7 to 4.7 mm (0.0669 to 0.185 in.)
   i	3.45 to 6.45 mm (0.136 to 0.254 in.)	J	1.0 to 4.0mm (0.0394 to 0.157 in.)
   K	-2.0 to 2.0 mm (-0.0787 to 0.0787 in.)	l	2.3 to 6.3 mm (0.0906 to 0.248 in.)
   m	0 mm	N	4.0 mm (0.157 in.)
   O	0 mm	P	4.0 mm (0.157 in.)
   Q	4.85 mm (0.191 in.)	R	4.85 mm (0.191 in.)

HINT:

Use the same procedure for the RH side and LH side (Refer to PROCEDURE - Step 3 ).

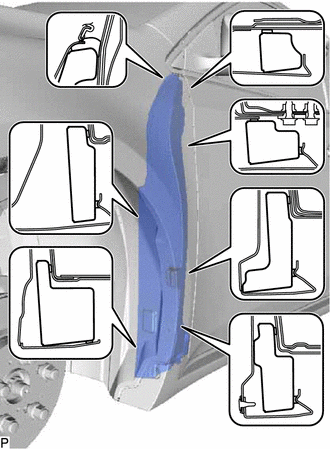

1. Remove the front fender seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

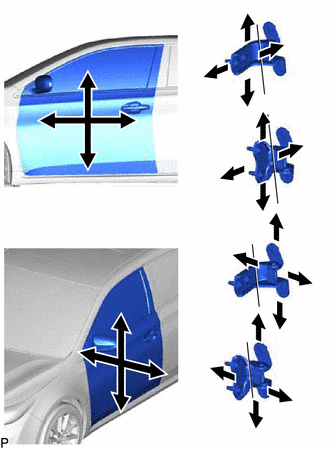

1. Using SST, loosen the hinge bolts on the vehicle body and adjust the door position.
   • SST: 09812-00010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten the hinge bolts on the vehicle body after adjustment.

   Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

3. Loosen the hinge bolts on the door and adjust the door position.
4. Tighten the hinge bolts on the door after adjustment.

   Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

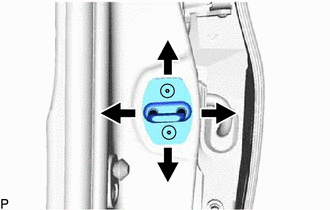

5. Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Using a brass bar and a hammer, hit the striker to adjust its position.
7. Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.

   Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

1. Install the front fender seal.

HINT:

Use the same procedure for the RH side and LH side (Refer to PROCEDURE - Step 3 ).

Refer to PROCEDURE - Step 12 . Refer to PROCEDURE - Step 16
