Removal [10/2014 - ]: Procedure

  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  3. REMOVE WINDSHIELD WIPER RELAY ASSEMBLY
    1. Remove the nut.

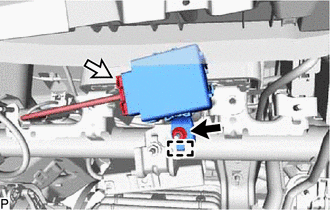

      GTY369970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Disengage the guide to remove the windshield wiper relay assembly.
