Removal [08/2015 - 08/2019]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).

  2. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 2

  4. REMOVE HEATER CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKETS

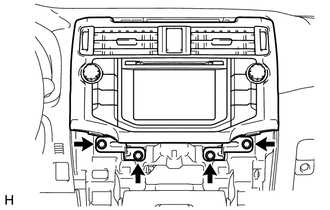

    1. Remove the 4 bolts.
      GTY343584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

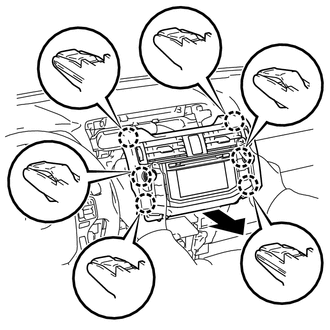

    2. Pull the navigation receiver assembly with brackets as shown in the illustration to detach the 6 claws on the backside of the navigation receiver assembly with brackets.
      GTY687456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector to remove the navigation receiver assembly with brackets.
  6. REMOVE HAZARD SWITCH WIRE

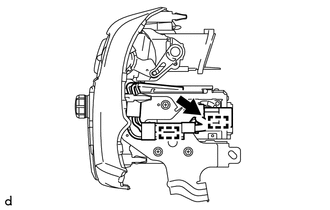

    1. Detach the 2 clamps.
      GTY445965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the hazard switch wire.
  7. REMOVE NO. 1 RADIO BRACKET

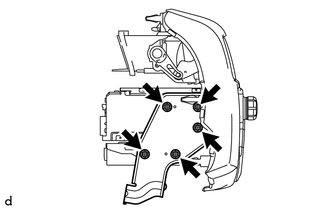

    1. Remove the 5 screws and No. 1 radio bracket.
      GTY455199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 RADIO BRACKET

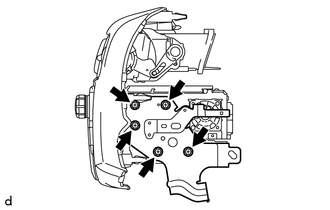

    1. Remove the 5 screws and No. 2 radio bracket.
      GTY445964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
