Removal [08/2015 - 08/2019]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).

  2. REMOVE DOOR SCUFF PLATE ASSEMBLY RH

    Refer to PROCEDURE - Step 4

  3. REMOVE COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 8

  4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 2

  5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  6. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 4

  7. REMOVE LOWER INSTRUMENT COVER LH

    Refer to PROCEDURE - Step 22

  8. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. REMOVE INSTRUMENT PANEL BOX DOOR COVER

    Refer to PROCEDURE - Step 24

  10. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

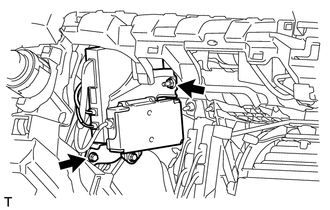

  11. REMOVE DCM (TELEMATICS TRANSCEIVER)
    1. Disconnect the connectors.
    2. Remove the bolt, nut and DCM (telematics transceiver) with bracket from the vehicle.
      GTY220005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE MAYDAY BATTERY WITH BRACKET
    1. Remove the bolt.
      GTY233905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the mayday battery with bracket.
  13. REMOVE NO. 1 TELEPHONE BRACKET
    1. Disconnect the 2 connectors.
      GTY220004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and No. 1 telephone bracket.
  14. REMOVE NO. 2 TELEPHONE BRACKET
    1. Remove the 2 bolts and No. 2 telephone bracket.
      GTY220009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
