Installation [08/2019 - ]: Procedure

INSTALL NO. 2 TELEPHONE BRACKET
1. Install the No. 2 telephone bracket with the 2 bolts.
  For bolt

  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
INSTALL NO. 1 TELEPHONE BRACKET
1. Install the No. 1 telephone bracket with the 2 bolts.
  For bolt

  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

INSTALL DCM (TELEMATICS TRANSCEIVER)

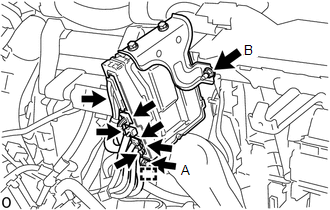

Install the guide and DCM (telematics transceiver) with bracket with the bolt and nut.

For bolt A

Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

For nut B

Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 13 [08/2019 - 08/2022] , or refer to PROCEDURE - Step 13 [08/2022 - ]
INSTALL INSTRUMENT PANEL BOX DOOR COVER
Refer to PROCEDURE - Step 14 [08/2019 - 08/2022] , or refer to PROCEDURE - Step 14 [08/2022 - ]
INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL LOWER INSTRUMENT COVER LH
Refer to PROCEDURE - Step 16 [08/2019 - 08/2022] , or refer to PROCEDURE - Step 16 [08/2022 - ]
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 17 [08/2019 - 08/2022] , or refer to PROCEDURE - Step 17 [08/2022 - ]
INSTALL FRONT NO. 2 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 7
INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 3
INSTALL COWL SIDE TRIM BOARD RH
Refer to PROCEDURE - Step 31 [08/2019 - 08/2022] , or refer to PROCEDURE - Step 31 [08/2022 - ]
INSTALL DOOR SCUFF PLATE ASSEMBLY RH
Refer to PROCEDURE - Step 79
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2019 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).
CHECK SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM [08/2019 - ]
PERFORM REGISTRATION
1. Perform registration.
  Refer to DCM ACTIVATION [08/2019 - ]

  NOTE:
  When replacing the DCM (telematics transceiver) perform registration.
