Removal [12/2012 - 10/2015]: Procedure

  1. REMOVE OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  2. REMOVE OUTER MIRROR COVER LH

    Refer to PROCEDURE - Step 2

  3. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY LH

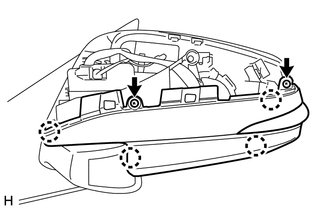

    1. Remove the 2 screws.
      GTY363534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 4 claws to remove the body cover.
    3. Detach the 2 claws and guide.
      GTY363726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector and remove the side turn signal light assembly LH.
