Removal [11/2015 - ]: Procedure

  1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  2. SECURE STEERING WHEEL

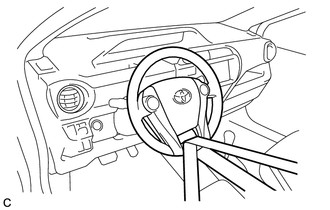

    1. Secure the steering wheel with the seat belt in order to prevent rotation.
      GTY336682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This operation is useful to prevent damage to the spiral cable.

  3. REMOVE COLUMN HOLE COVER SILENCER SHEET

    Refer to PROCEDURE - Step 9

  4. SEPARATE STEERING SLIDING YOKE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  5. SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

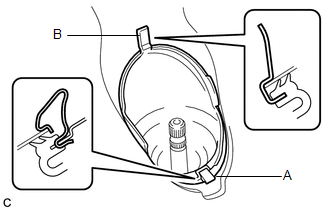

    1. Remove clip A, detach clip B from the body and disconnect the No. 1 steering column hole cover sub-assembly.
      GTY340669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage clip B.

  6. REMOVE FRONT WHEELS
  7. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 6 and Refer to PROCEDURE - Step 6

  8. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  9. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  10. SEPARATE TIE ROD END SUB-ASSEMBLY LH
    1. Remove the cotter pin and nut.

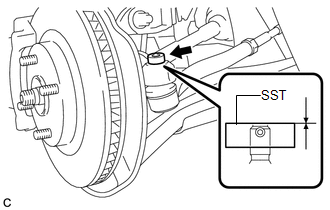

    2. Install SST to the tie rod end.
      GTY739762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09960-20010
        1. 09961-02060
      NOTE:

      Make sure that the upper end of the tie rod end and SST are aligned.

    3. Secure SST using a string.
      NOTE:

      Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.

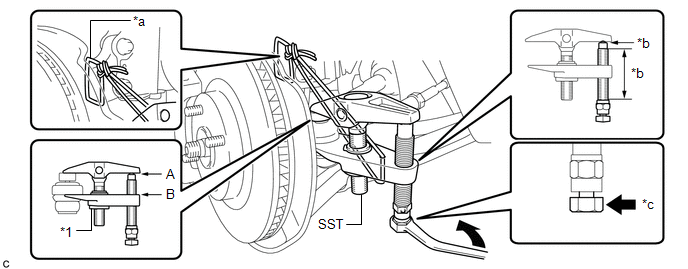

    4. Using SST, separate the tie rod end from the steering knuckle.
      • SST: 09960-20010
        1. 09961-02060
      GTY715203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Center Nut - -
      *a String *b Grease Application Area
      *c Place the wrench here. - -
      WARNING:

      Apply grease to the bolt threads and the tip of SST.

      NOTE:
      • Install SST with the center nut so that A and B shown in the illustration are parallel. Otherwise, the dust cover may be damaged.
      • Be sure to place the wrench on the part indicated in the illustration.
      • Do not damage the front disc brake dust cover.
      • Do not damage the ball joint dust cover.
      • Do not damage the steering knuckle.
  11. SEPARATE TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  12. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  13. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  14. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  15. REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

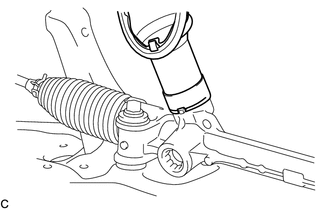

    1. Remove the No. 1 steering column hole cover sub-assembly from the steering link assembly.
      GTY339842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE STEERING LINK ASSEMBLY
    1. Remove the 2 bolts, 2 nuts and steering link assembly from the front suspension crossmember sub-assembly.
      GTY327010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Keep the nut from rotating while turning the bolt because the nut has its own stopper.

  17. SECURE STEERING LINK ASSEMBLY
    1. Using SST, secure the steering link assembly in a vise.
      • SST: 09612-00012
      GTY710750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      Tape SST before use.

  18. REMOVE TIE ROD END SUB-ASSEMBLY LH
    1. Put matchmarks on the tie rod end sub-assembly LH and steering gear assembly.
      GTY729447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Remove the tie rod end sub-assembly LH and lock nut.
  19. REMOVE TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.
