Removal [11/2015 - ]: Procedure

  1. DRAIN COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
    1. Disconnect the ventilation hose.

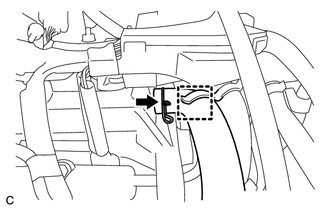

      GTY325220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Disconnect the purge VSV.

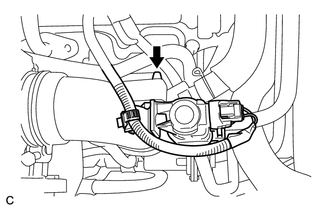

      GTY338054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    3. Disconnect the mass air flow meter connector.

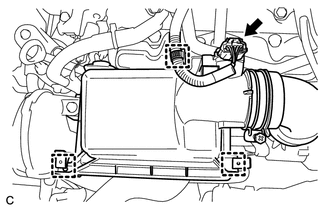

      GTY338045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    4. Disconnect the wire harness clamp.
    5. Release the 2 clamps.
    6. Loosen the hose clamp and remove the air cleaner cap sub-assembly.

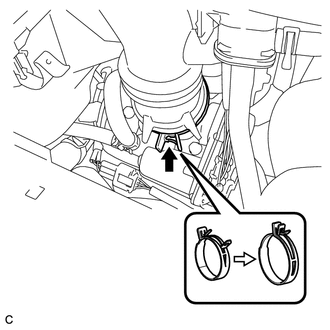

      GTY338307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. Disconnect the throttle body with motor connector and the 2 water by-pass hoses.

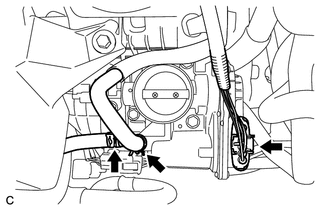

      GTY338306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Remove the 3 bolts.

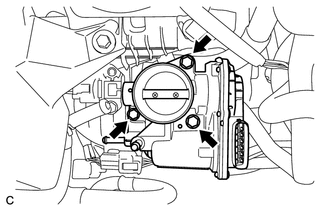

      GTY338305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    3. Remove the throttle body with motor assembly.
    4. Remove the gasket from the intake manifold.

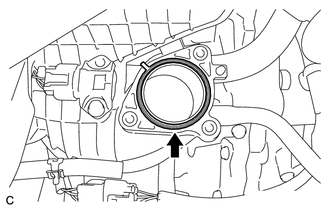

      GTY338304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
