Removal [11/2015 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] and Refer to PRECAUTION [06/2017 - ] ).
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
(Refer to REMOVAL [11/2015 - 06/2017] and Refer to REMOVAL [06/2017 - ] )
- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
(Refer to REMOVAL [11/2015 - ] )
- REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE STOP LIGHT SWITCH ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

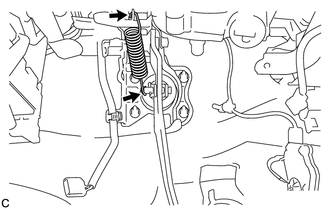

- REMOVE BRAKE PEDAL RETURN SPRING
- REMOVE COLUMN HOLE COVER SILENCER SHEET
Refer to PROCEDURE - Step 9
- SEPARATE STEERING SLIDING YOKE SUB-ASSEMBLY
Refer to PROCEDURE - Step 10
- REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
Refer to PROCEDURE - Step 12
- REMOVE PUSH ROD PIN
- REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

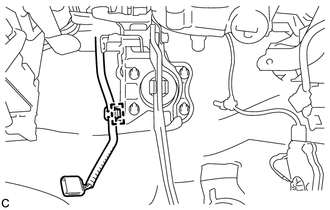

- Disengage the wire harness clamp from the brake pedal support assembly.

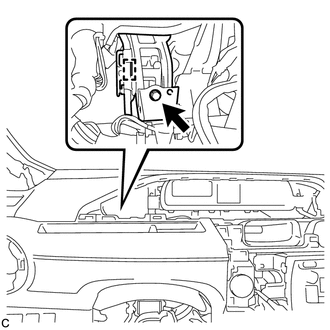

- Remove the bolt and separate the brake pedal support assembly from the instrument panel reinforcement assembly.

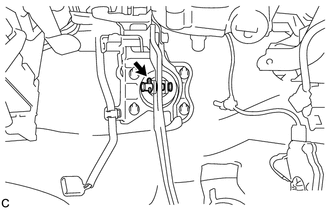

- Disengage the wire harness clamp from the brake pedal support assembly.

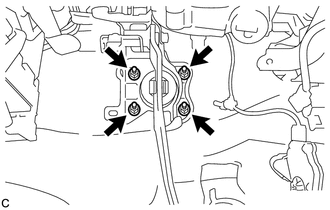

- Remove the 4 nuts and brake pedal support assembly.
- Disengage the wire harness clamp from the brake pedal support assembly.
