Removal [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [02/2014 - ]

  2. REMOVE NO. 4 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 3

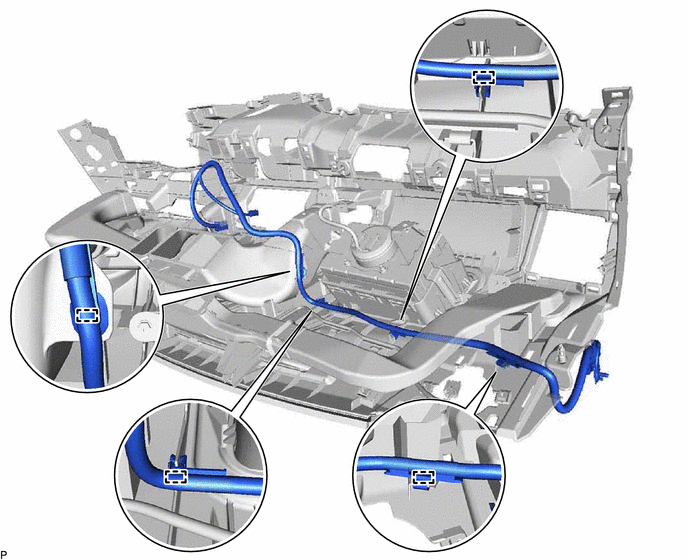

  3. REMOVE ANTENNA CORD SUB-ASSEMBLY
    1. Disengage the 4 clamps and remove the antenna cord sub-assembly.
      GTY432013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2015] , or refer to REMOVAL [11/2015 - 11/2016] , or refer to REMOVAL [11/2016 - ]

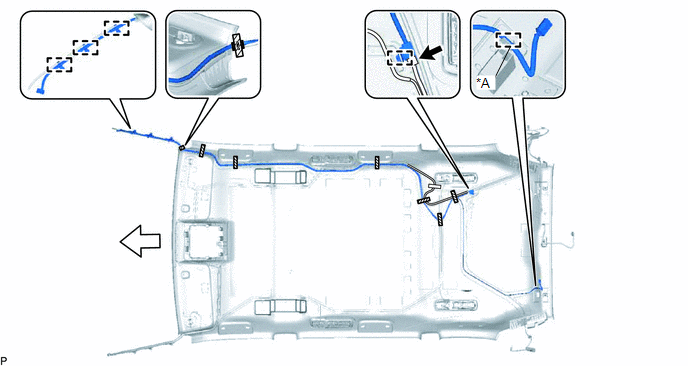

  5. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Normal Roof)
    1. Disconnect the connector.
      GTY449336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Satellite Radio - -
      Adhesive Tape Front
    2. Disengage each clamp.
    3. Remove the adhesive tape from the roof headlining assembly.
    4. Remove the No. 2 antenna cord sub-assembly from the roof headlining assembly.

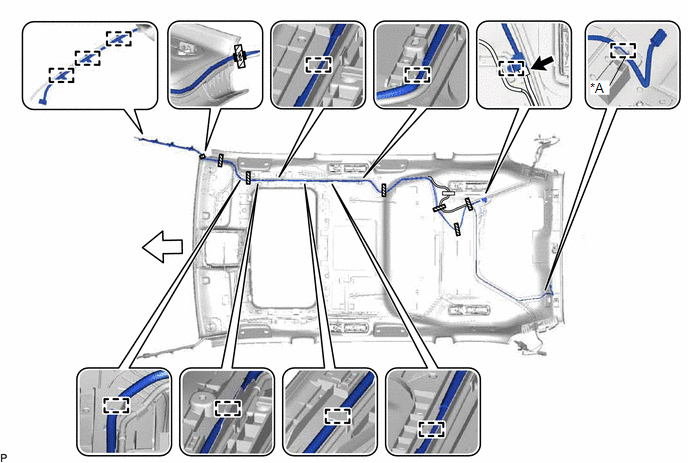

  6. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Sliding Roof)
    1. Disconnect the connector.
      GTY430193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Satellite Radio - -
      Adhesive Tape Front
    2. Disengage each clamp.
    3. Remove the adhesive tape from the roof headlining assembly.
    4. Remove the No. 2 antenna cord sub-assembly from the roof headlining assembly.

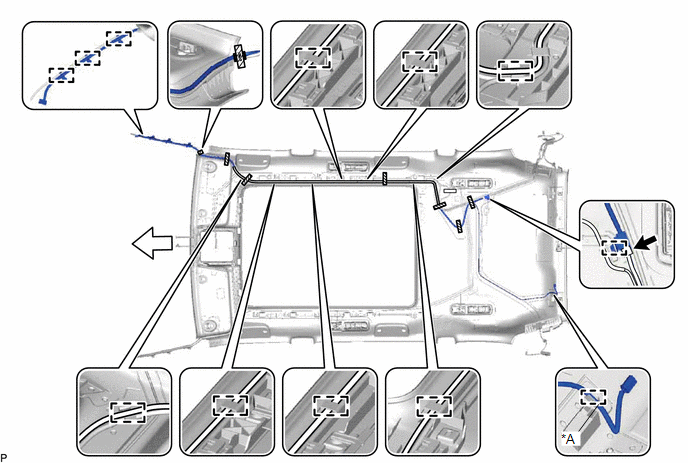

  7. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Panoramic Moon Roof)
    1. Disconnect the connector.
      GTY436207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Satellite Radio - -
      Adhesive Tape Front
    2. Disengage each clamp.
    3. Remove the adhesive tape from the roof headlining assembly.
    4. Remove the No. 2 antenna cord sub-assembly from the roof headlining assembly.

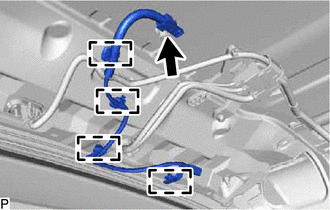

  8. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (w/ Satellite Radio)
    1. Disconnect the connector.
      GTY450218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clamps to remove the No. 3 antenna cord sub-assembly.

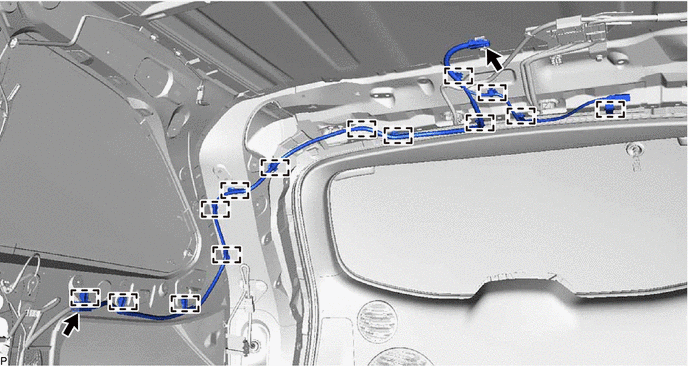

  9. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (w/ Manual (SOS) Switch)
    1. Disconnect the 2 connectors.
      GTY450217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 14 clamps and remove the No. 3 antenna cord sub-assembly.
