Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN ENGINE COOLANT

    See step  1 , or see step  1

  2. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  3. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 14

  4. REMOVE ENGINE WATER PUMP ASSEMBLY

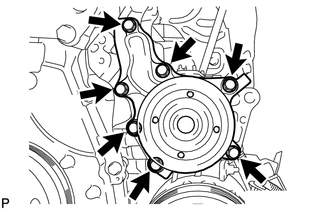

    1. Remove the 7 bolts, engine water pump assembly and water pump gasket.
      GTY298545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
