Removal [02/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  4. REMOVE FRONT WHEEL LH
  5. REMOVE FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH

    Refer to REMOVAL [02/2014 - ]

  6. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 3

  7. REMOVE FRONT FENDER LINER LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 4

  8. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  9. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Disconnect the hood lock control cable assembly and remove the hood lock control lever sub-assembly.
      GTY429932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE RADIATOR GRILLE (w/o Dynamic Radar Cruise Control System)

    Refer to REMOVAL [02/2014 - 11/2016]

  11. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to REMOVAL [02/2014 - 11/2016]

  12. REMOVE HOOD LOCK ASSEMBLY

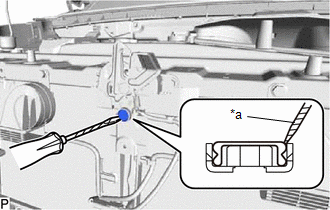

    1. Using a screwdriver, remove the hood lock nut cap.

      HINT:

      Tape the screwdriver tip before use.

      GTY427306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

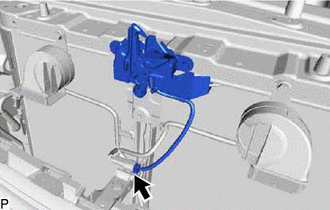

    2. w/ Engine Hood Courtesy Switch:
      1. Disconnect the connector.
        GTY451732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

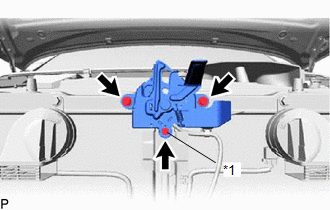

    3. Remove the 2 bolts and hood lock bolt.
      GTY433060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Bolt

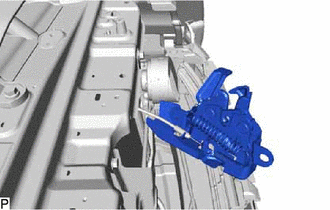

    4. Disconnect the hood lock control cable assembly and remove the hood lock assembly.
      GTY429929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

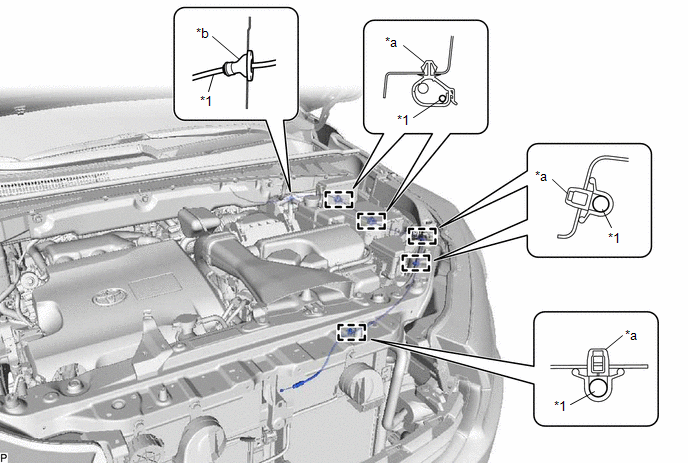

    1. Using a screwdriver, disengage the 5 clamps and hood cable grommet as shown in the illustration.
      GTY436893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly - -
      *a Clamp *b Hood Cable Grommet

      HINT:

      Tape the screwdriver tip before use.

    2. Pull the hood lock control cable assembly from the engine compartment and remove it.
