Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY
    1. Using a T30 "TORX" socket wrench, install the windshield wiper motor assembly with the 2 bolts.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  2. INSTALL FRONT WIPER CRANK SUB-ASSEMBLY
    1. Turn the power switch on (IG).
    2. Operate the wiper and stop the windshield wiper motor assembly at the automatic stop position.
    3. Turn the power switch off.
    4. Temporarily install the front wiper crank sub-assembly to the windshield wiper motor assembly with the nut.
    5. Temporarily install the windshield wiper link No. 1 rod to the pivot of the front wiper crank sub-assembly.
    6. Align the nut and pivot of the front wiper crank sub-assembly with the windshield wiper link No. 1 rod as shown in the illustration.
      GTY447680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pivot of the front wiper crank sub-assembly *b Windshield wiper link No. 1 rod
    7. Tighten the nut to install the front wiper crank sub-assembly.

      Torque: 17.2 N*m (175 kgf*cm, 13 ft.*lbf)

    8. Apply MP grease to the pivot of the front wiper crank sub-assembly.

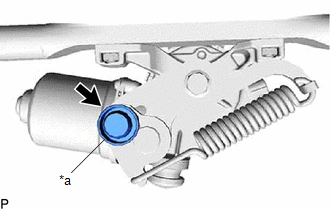

      GTY444112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pivot of the front wiper crank sub-assembly
    9. Connect the windshield wiper link No. 1 rod to the pivot of the front wiper crank sub-assembly.

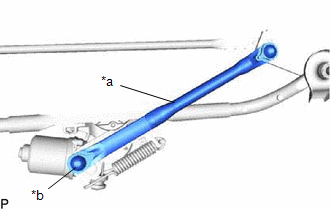

      GTY426314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Windshield Wiper Link No. 1 Rod
      *b Pivot of the front wiper crank sub-assembly
  3. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Engage the motor grommet as shown in the illustration.

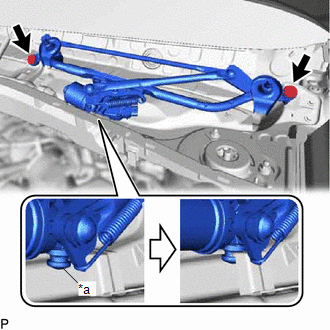

      GTY443955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Motor Grommet
      NOTE:

      Be careful not to damage the windshield when installing the windshield wiper motor and link assembly.

    2. Install the windshield wiper motor and link assembly with the 2 bolts.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    3. Connect the connector.
  4. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
    1. Engage the 8 guides as shown in the illustration.

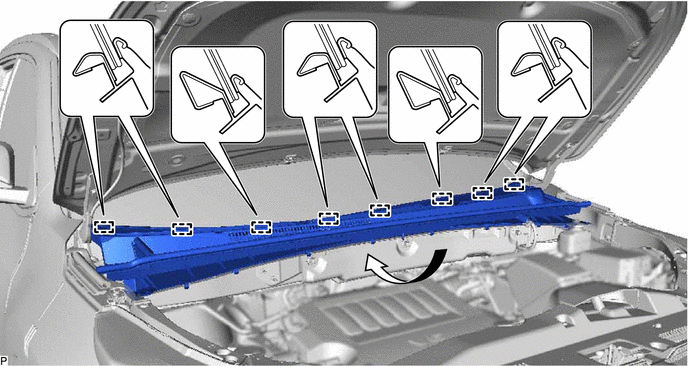

      GTY445038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 3 guides and 6 claws to install the cowl top ventilator louver sub-assembly as shown in the illustration.

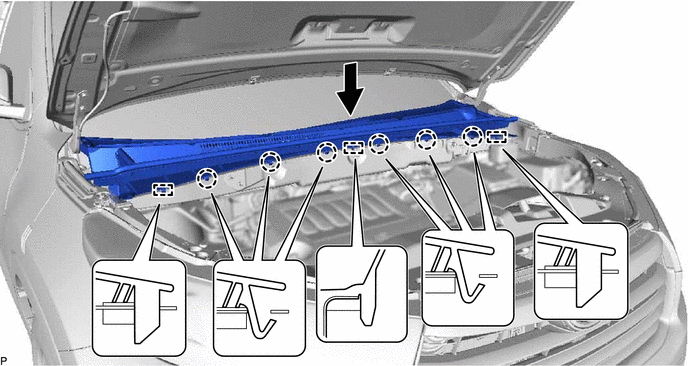

      GTY454997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 clips.
  5. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
    1. Engage the 2 claws to install the front fender to cowl side seal LH.
  6. INSTALL FRONT FENDER TO COWL SIDE SEAL RH

    HINT:

    Use the same procedure as for the LH side.

  7. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
    1. When reusing the front wiper arm and blade assembly LH:
      1. Clean the wiper arm serrations to remove any burrs, dirt, etc.

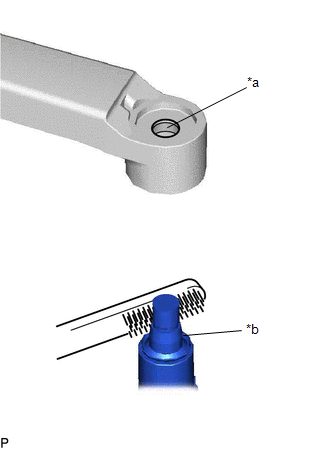

        GTY447835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Wiper Arm Serration
        *b Wiper Pivot Serration
        NOTE:

        Do not grind down the wiper arm serrations.

    2. When reusing the windshield wiper link assembly:
      1. Clean the wiper pivot serrations with a wire brush.
    3. Operate the wiper and stop the windshield wiper motor assembly at the automatic stop position.
    4. Install the front wiper arm and blade assembly LH with the nut to the position shown in the illustration.
      GTY453991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Dot

      Torque: 24 N*m (245 kgf*cm, 18 ft.*lbf)

      HINT:

      Hold the wiper arm by hand while tightening the nut.

      Reference Measurement

      Area Measurement
      A 10.0 mm (0.394 in.)
  8. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
    1. When reusing the front wiper arm and blade assembly RH:
      1. Clean the wiper arm serrations to remove any burrs, dirt, etc.

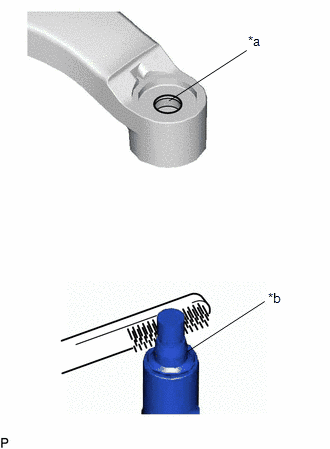

        GTY443292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Wiper Arm Serration
        *b Wiper Pivot Serration
        NOTE:

        Do not grind down the wiper arm serrations.

    2. When reusing the windshield wiper link assembly:
      1. Clean the wiper pivot serrations with a wire brush.
    3. Operate the wiper and stop the windshield wiper motor assembly at the automatic stop position.
    4. Install the front wiper arm and blade assembly RH with the nut to the position shown in the illustration.
      GTY440197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Dot

      Torque: 24 N*m (245 kgf*cm, 18 ft.*lbf)

      HINT:

      Hold the wiper arm by hand while tightening the nut.

      Reference Measurement

      Area Measurement
      A 10.0 mm (0.394 in.)
    5. Turn the power switch on (IG).
    6. Operate the windshield wipers while spraying washer fluid onto the windshield glass. Make sure that the windshield wipers function properly and the wipers do not come into contact with the vehicle body.
    7. Lift each wiper arm twice after the wipers stop and check the wiper set position.
    8. Turn the power switch off.
  9. INSTALL FRONT WIPER ARM HEAD CAP
    1. Engage the 3 claws to install the front wiper arm head cap.

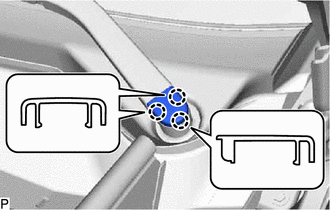

      GTY454996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.
