Removal [02/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE EGR COOLER ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2016]

  2. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2016]

  3. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 12 , or refer to PROCEDURE - Step 12

  4. REMOVE FRONT FLOOR COVER LH
    1. Remove the clip (A), 2 screws and 4 bolts from the front floor cover LH.
      GTY454210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    2. Disconnect the 2 clips (B) to remove the front floor cover LH.
  5. REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY

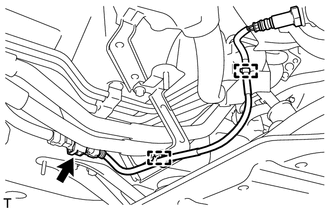

    1. Disengage the 2 wire harness clamps.
      GTY304373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the heated oxygen sensor (for Bank 1) connector.

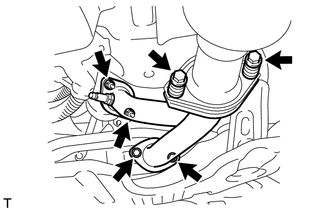

    3. Remove the 4 bolts, 2 nuts, 2 compression springs and front No. 3 exhaust pipe sub-assembly.
      GTY307525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 gaskets from the front No. 3 exhaust pipe sub-assembly.
  6. REMOVE MANIFOLD STAY
    1. Remove the bolt, nut and manifold stay from the exhaust manifold sub-assembly RH (TWC: Front Catalyst) and hybrid vehicle transaxle assembly.
      GTY307014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 EGR PIPE

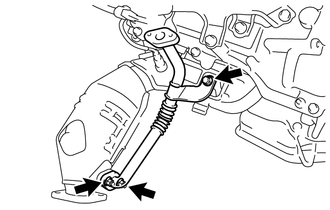

    1. Remove the bolt, 2 nuts, No. 1 EGR pipe and EGR inlet gasket from the exhaust manifold sub-assembly RH (TWC: Front Catalyst).
      GTY430426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

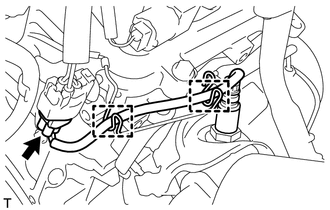

    1. Disconnect the air fuel ratio sensor (for Bank 1) connector.
      GTY304371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 wire harness clamps.

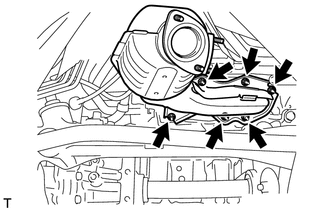

    3. Using a 12 mm deep socket wrench, remove the 6 nuts and exhaust manifold sub-assembly RH (TWC: Front Catalyst) from the cylinder head sub-assembly RH.
      GTY304372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE EXHAUST MANIFOLD TO HEAD GASKET
    1. Remove the exhaust manifold to head gasket from the cylinder head sub-assembly RH.
      GTY446708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 5

  11. REMOVE FRONT EXHAUST PIPE ASSEMBLY

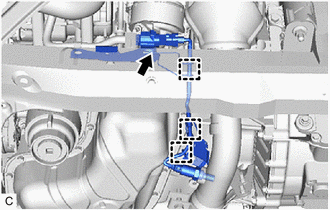

    1. Disengage the 3 wire harness clamps.
      GTY451422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the heated oxygen sensor connector.
    3. Loosen the bolt (A).
      GTY447391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts (B) and exhaust pipe support bracket from the front exhaust pipe assembly.
    5. Remove the 2 nuts and front exhaust pipe assembly from the exhaust manifold sub-assembly LH (TWC: Front Catalyst).
    6. Remove the gasket from the front exhaust pipe assembly.
  12. REMOVE AIR FUEL RATIO SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 1

  13. REMOVE NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 9

  14. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

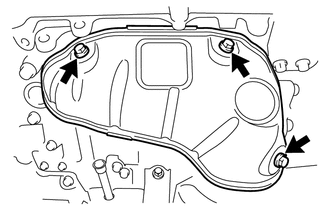

    1. Remove the 3 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold sub-assembly LH (TWC: Front Catalyst).
      GTY452415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 MANIFOLD STAY

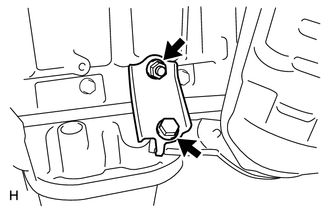

    1. Remove the bolt, nut and No. 2 manifold stay from the exhaust manifold sub-assembly LH (TWC: Front Catalyst) and cylinder block sub-assembly.
      GTY143218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

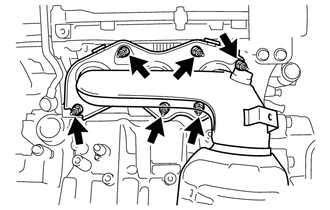

    1. Using a 12 mm deep socket wrench, remove the 6 nuts and exhaust manifold sub-assembly LH (TWC: Front Catalyst) from the cylinder head sub-assembly LH.
      GTY433061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE EXHAUST MANIFOLD TO HEAD GASKET LH

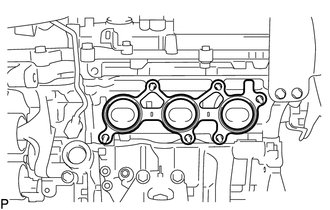

    1. Remove the exhaust manifold to head gasket LH from the cylinder head sub-assembly LH.
      GTY447233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
