Removal [12/2013 - 11/2016]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.
Refer to PRECAUTION [12/2013 - 11/2016]
- DISCHARGE FUEL SYSTEM PRESSURE
Refer to PRECAUTION [12/2013 - 11/2016]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2013 - 11/2016]
- REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to REMOVAL [12/2013 - ]
- REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4
- REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
Refer to REMOVAL [12/2013 - 11/2016]
- REMOVE INTAKE AIR SURGE TANK ASSEMBLY
- Slide the clip and disconnect the union to check valve hose from the intake air surge tank assembly.
- Disconnect the union to check valve hose from the hose clamp.
- Disconnect the fuel vapor feed hose from the intake air surge tank assembly.
- Disconnect the fuel vapor feed hose from the hose clamp.

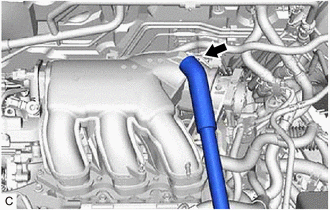

- Slide the clip and disconnect the ventilation hose from the intake air surge tank assembly.
- Disconnect the intake air control valve (for ACIS) connector.
- Remove the bolt and separate the throttle body bracket from the intake air surge tank assembly.

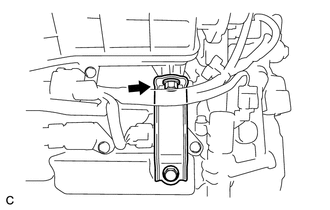

- Remove the bolt and separate the No. 1 surge tank stay from the intake air surge tank assembly.
- Remove the 2 nuts from the intake air surge tank assembly.
Bolt Nut - Using a 5 mm hexagon socket wrench, remove the 4 bolts and intake air surge tank assembly from the intake manifold.

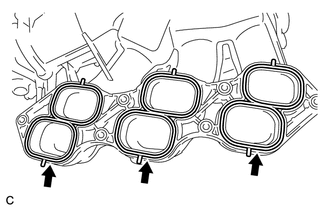

- Remove the 3 intake air surge tank gaskets from the intake manifold.
- Slide the clip and disconnect the union to check valve hose from the intake air surge tank assembly.
- REMOVE NO. 2 ENGINE MOUNTING STAY RH (for Engine Mounting stay Side)
Refer to PROCEDURE - Step 33

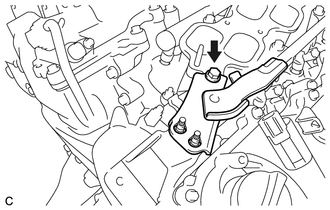

- REMOVE NO. 2 ENGINE MOUNTING STAY RH (for Intake Manifold Side)
- REMOVE FUEL HOSE PROTECTOR
Refer to PROCEDURE - Step 5
- DISCONNECT FUEL TUBE SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE INTAKE MANIFOLD
- REMOVE STUD BOLT
HINT:
If a stud bolt is deformed or the threads are damaged, replace it.
