Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE FRONT WHEEL RH (w/ Oil Cooler)
  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 8

  3. SEPARATE FRONT FENDER LINER RH (w/ Oil Cooler)

    Refer to PROCEDURE - Step 12

  4. REMOVE FRONT FENDER APRON SEAL RH (w/ Oil Cooler)

    Refer to PROCEDURE - Step 14

  5. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the wire harness protector. (w/ Oil Cooler)
      GTY429071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Protector
    2. Disconnect the oil pressure switch assembly connector.
    3. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.

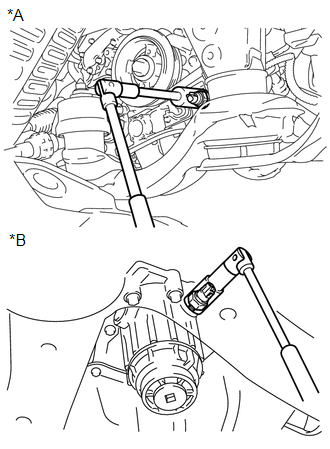

      GTY438268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ oil cooler
      *B w/o oil cooler
