Removal [12/2013 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [12/2013 - 11/2016]

    Refer to PRECAUTION [11/2016 - ]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [12/2013 - 11/2016]

    Refer to PRECAUTION [11/2016 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2013 - 11/2016]

    Refer to INITIALIZATION [11/2016 - ]

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 23

  4. REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 24

  5. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 25

  6. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 26

  7. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET (for Radio and Display Type)

    Refer to PROCEDURE - Step 5

  8. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (for Navigation Receiver Type)

    Refer to PROCEDURE - Step 6

  9. REMOVE CLOCK ASSEMBLY

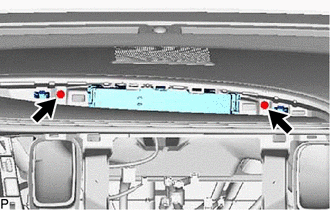

    1. Remove the 2 screws.
      GTY446592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

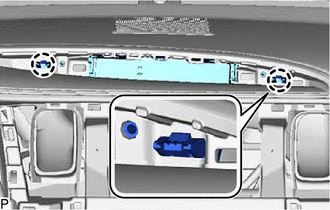

    2. Disengage the 2 claws.
      GTY455336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

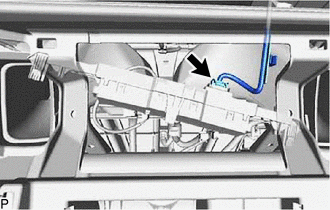

    3. Disconnect the connector and remove the clock assembly.
      GTY446590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
