DTC P0069-273: Manifold Absolute Pressure - Barometric Pressure Correlation [11/2016 - ]: Procedure
- CHECK DTC OUTPUT (ENGINE AND ECT)
- Connect the Techstream to the DLC3.
- Turn the power switch on (READY).
- Fully depress the accelerator pedal for 5 seconds to start the engine and keep it running.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
- Check for DTCs.
Powertrain > Engine and ECT > Trouble Codes
Result
Result Proceed to No DTCs are output, or DTCs except the ones in the table below are also output. A Any of the following DTCs are also output. B Relevant DTC P0107 Manifold Absolute Pressure / Barometric Pressure Circuit Low Input P0108 Manifold Absolute Pressure / Barometric Pressure Circuit High Input P106A Evaporative Emission System Pressure Sensor - Manifold Absolute Pressure Correlation HINT:
P0069-273 may be stored due to a malfunction which causes the DTCs in the preceding table to be stored. In this case, first troubleshoot the output DTCs in the preceding table.
- Turn the power switch off.
Result: 2
B
GO TO DTC CHART (SFI SYSTEM). Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2016 - 10/2017] Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2017 - ]
Result: 1
A
See step 2
- CHECK DTC OUTPUT (HYBRID CONTROL)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
- Check for DTCs.
Powertrain > Hybrid Control > Trouble Codes
Result
Result Proceed to P0069-273 only is output, or DTCs except the ones in the table below are also output. A Any of the following DTCs are also output. B Relevant DTC P0A1A-151, 658 Generator Control Module P0A1B-786 Drive Motor "A" Control Module P0A1D-148 Hybrid Powertrain Control Module P1C2A-155 Generator A/D Converter Circuit P1C73-512 Sensor Standard Voltage "F" Circuit / Open P1CA6-156 Generator Control Module Malfunction P1CA7-193 Drive Motor Control Module Malfunction P2228-268 Barometric Pressure Sensor "A" Circuit Low P2229-269 Barometric Pressure Sensor "A" Circuit High P2511-149 HV CPU Power Relay Sense Circuit Intermittent No Continuity P3133-659 Communication Error from Generator to Drive Motor "A" P3134-661 Communication Error from Drive Motor "A" to Generator P324E-788 MG-ECU Power Relay Intermittent Circuit U0100-530 Lost Communication with ECM / PCM "A" U0110 (all INF codes)*1 Lost Communication with Drive Motor Control Module "A" HINT:
- *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic procedure.
- P0069-273 may be stored due to a malfunction which causes the DTCs in the preceding table to be stored. In this case, first troubleshoot the output DTCs in the preceding table.
- Turn the power switch off.
Result: 2
B
GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2016 - 10/2017] Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2017 - ]
Result: 1
A
See step 3
- READ VALUE USING TECHSTREAM (MAP, ATMOSPHERE PRESSURE)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / MAP, Atmosphere Pressure.
Powertrain > Hybrid Control > Data List

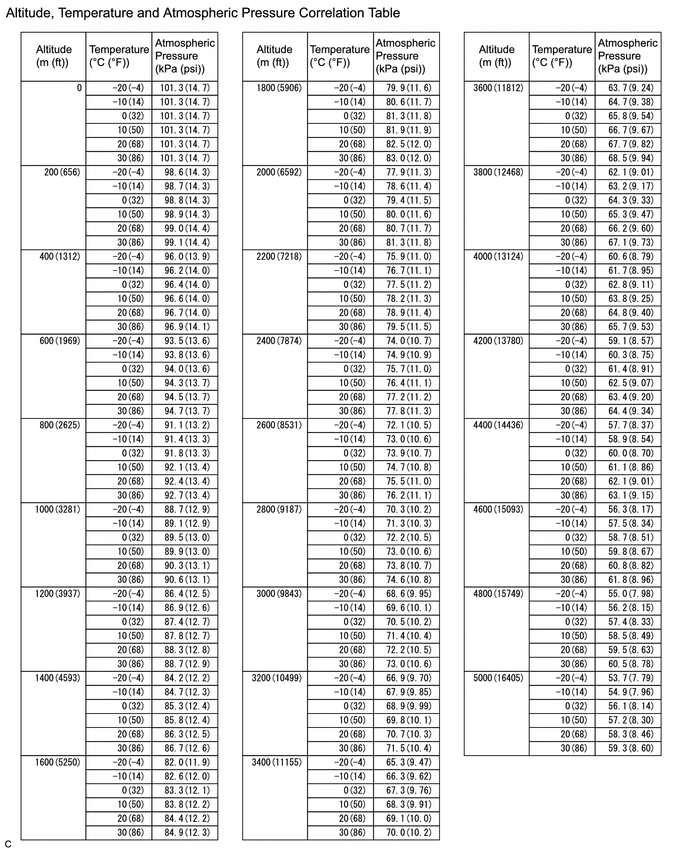

Tester Display MAP Atmosphere Pressure - Using the table, read the normal atmospheric pressure value for the applicable altitude.
HINT:
- Standard atmospheric pressure is approximately 101 kPa (15 psi).
- For every 100 m (328 ft) increase in altitude, atmospheric pressure drops by approximately 1 kPa (0.1 psi). This varies by weather.
- Compare the MAP and Atmosphere Pressure values in the Data List with the normal atmospheric value from the table.
Result
Result Proceed to Except the following. A Difference between "MAP" in Data List and normal atmospheric pressure value is 10 kPa (1.5 psi) or more. B Difference between "Atmosphere Pressure" in Data List and normal atmospheric pressure value is 10 kPa (1.5 psi) or more. C - Turn the power switch off.
Result: 2
B
See step 7
Result: 3
C
REPLACE INVERTER WITH CONVERTER ASSEMBLY. Refer to COMPONENTS [11/2016 - ]
Result: 1
A
See step 4
- READ VALUE USING TECHSTREAM (MAP)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Move the shift lever to P.
- Enter the following menus: Powertrain / Hybrid Control / Data List / MAP
Powertrain > Hybrid Control > Data List
Tester Display MAP - Read the "MAP" value in the Data List with the engine stopped.
- While depressing the brake pedal, turn the power switch on (READY).
- With the READY indicator light illuminated, fully depress the accelerator pedal.
- Read the "MAP" value in the Data List with the engine running.
- Compare the "MAP" value noted with the engine stopped and the "MAP" value noted with the engine running.
OK
The "MAP" value changes (pressure decreases when the engine is started).
Result
Proceed to OK NG - Turn the power switch off.
Result: 2
NG
See step 7
Result: 1
OK
See step 5
- REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR
Refer to COMPONENTS [11/2016 - ]
Result
Proceed to NEXT Result: 1
NEXT
See step 6
- READ VALUE USING TECHSTREAM (MAP, ATMOSPHERE PRESSURE)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / MAP, Atmosphere Pressure.
Powertrain > Hybrid Control > Data List
Tester Display MAP Atmosphere Pressure - Compare the Data List item "MAP" with "Atmosphere Pressure".
Result
Result Proceed to The difference between "MAP" and "Atmosphere Pressure" is 10 kPa (1.5 psi) or more. A The difference between "MAP" and "Atmosphere Pressure" is less than 10 kPa (1.5 psi). B - Turn the power switch off.
Result: 1
A
REPLACE INVERTER WITH CONVERTER ASSEMBLY. Refer to COMPONENTS [11/2016 - ]
Result: 2
B
COMPLETED
- CHECK TERMINAL VOLTAGE (MANIFOLD ABSOLUTE PRESSURE SENSOR)
- Disconnect the C57 manifold absolute pressure sensor connector.
- Turn the power switch on (IG).
- Measure the voltage according to the value(s) in the table below.
*a Front view of wire harness connector
(to Manifold Absolute Pressure Sensor)Standard Voltage
Tester Connection Condition Specified Condition C57-3 (VC) - C57-2 (E2) Power switch on (IG) 4.5 to 5.5 V C57-1 (PIM) - C57-2 (E2) Power switch on (IG) 3.0 to 5.0 V - Turn the power switch off.
- Reconnect the C57 manifold absolute pressure sensor connector.
Result
Proceed to OK NG
Result: 2
NG
See step 10
Result: 1
OK
See step 8
- REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR
Refer to COMPONENTS [11/2016 - ]
Result
Proceed to NEXT Result: 1
NEXT
See step 9
- READ VALUE USING TECHSTREAM (MAP, ATMOSPHERE PRESSURE)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / MAP, Atmosphere Pressure.
Powertrain > Hybrid Control > Data List
Tester Display MAP Atmosphere Pressure - Compare the Data List item "MAP" with "Atmosphere Pressure".
Result
Result Proceed to The difference between "MAP" and "Atmosphere Pressure" is less than 10 kPa (1.5 psi). A The difference between "MAP" and "Atmosphere Pressure" is 10 kPa (1.5 psi) or more. B - Turn the power switch off.
Result: 1
A
COMPLETED
Result: 2
B
REPLACE ECM. Refer to COMPONENTS [11/2016 - ]
- CHECK HARNESS AND CONNECTOR (ECM - MANIFOLD ABSOLUTE PRESSURE SENSOR)
- Disconnect the C1 ECM connector.
- Disconnect the C57 manifold absolute pressure sensor connector.
- Measure the resistance according to the value(s) in the table below.

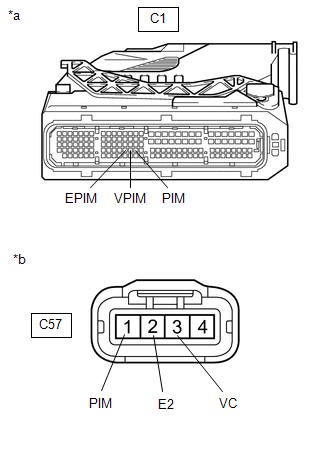

*a Front view of wire harness connector
(to ECM)*b Front view of wire harness connector
(to Manifold Absolute Pressure Sensor)Standard Resistance
Tester Connection Condition Specified Condition C1-89 (PIM) - C57-1 (PIM) Always Below 1 Ω C1-87 (EPIM) - C57-2 (E2) Always Below 1 Ω C1-88 (VPIM) - C57-3 (VC) Always Below 1 Ω C1-89 (PIM) or C57-1 (PIM) - Body ground Always 10 kΩ or higher C1-88 (VPIM) or C57-3 (VC) - Body ground Always 10 kΩ or higher - Reconnect the C57 manifold absolute pressure sensor connector.
- Reconnect the C1 ECM connector.
Result
Proceed to OK NG
Result: 1
OK
REPLACE ECM. Refer to COMPONENTS [11/2016 - ]
Result: 2
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
