Disassembly [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR ASSEMBLY)
Refer to PROCEDURE - Step 2
REMOVE FUEL SENDER GAUGE ASSEMBLY
See step 2

REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY

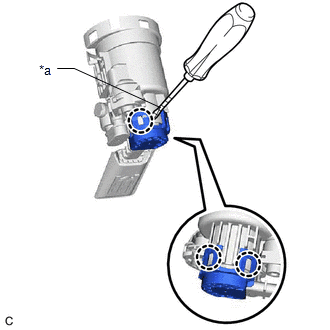

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws, and remove the fuel suction plate sub-assembly from the fuel filter assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

NOTE:

Do not damage the fuel suction plate sub-assembly.

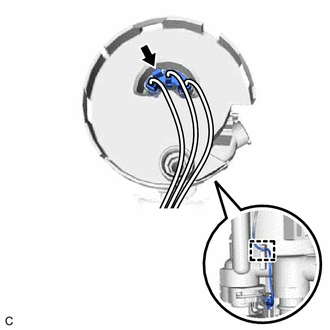

Disconnect the 2 fuel pump harness connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Ground Terminal of Fuel Pump Harness

Disconnect the ground terminal of the fuel pump harness.
Disengage the clamp to disconnect the fuel pump harness from the fuel suction plate sub-assembly.

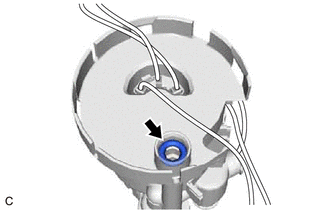

Remove the O-ring from the fuel filter assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT FUEL PUMP HARNESS

Disconnect the fuel pump harness connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the clamp to disconnect the fuel pump harness from the fuel filter assembly.

REMOVE NO. 2 FUEL SUCTION SUPPORT

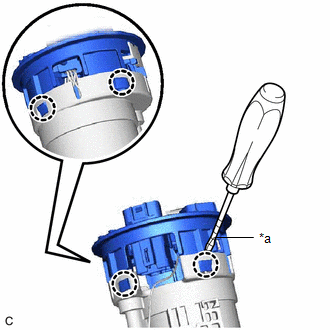

Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws and remove the No. 2 fuel suction support from the fuel filter assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

NOTE:

Do not damage the No. 2 fuel suction support.

REMOVE FUEL PUMP CUSHION RUBBER

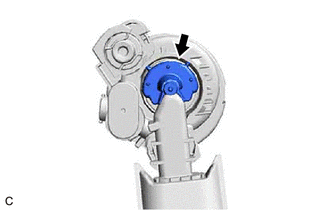

Remove the fuel pump cushion rubber from the fuel pump.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FUEL PUMP FILTER

Remove the clip and fuel pump filter from the fuel pump.

Disengage the claw to remove the fuel pump harness from the fuel pump filter.

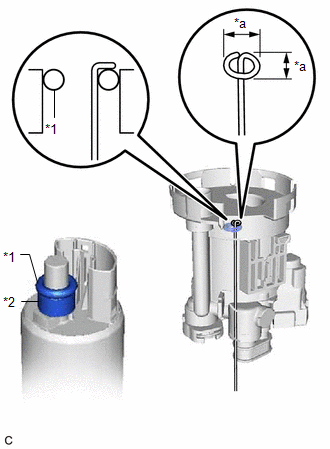

REMOVE FUEL PUMP

Remove the fuel pump from the fuel filter assembly.

Remove the O-ring and fuel pump spacer from the fuel pump.

*1	O-ring
*2	Fuel Pump Spacer
*a	5.0 mm (0.197 in.)

NOTE:

Be careful not to damage the sealing surface.

HINT:

If the O-ring still remains in the fuel filter assembly, remove it using a wire tip (1 mm (0.0394 in.) diameter) that is formed as shown in the illustration.
