Removal [11/2016 - ]: Procedure
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FUEL TANK ASSEMBLY
Refer to REMOVAL [11/2016 - ]
- REMOVE FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR ASSEMBLY)

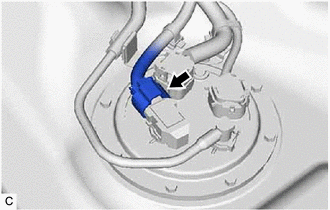

- Disconnect the fuel tank pressure sensor (vapor pressure sensor assembly) connector.
- Remove the tube joint clip and pull off the fuel tank pressure sensor (vapor pressure sensor assembly).

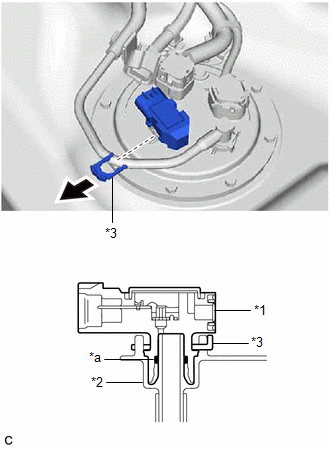

*1 Fuel Tank Pressure Sensor (Vapor Pressure Sensor Assembly) *2 Fuel Suction Plate Sub-assembly *3 Tube Joint Clip *a O-ring NOTE:- Remove any dirt or foreign matter on the fuel tank pressure sensor (vapor pressure sensor assembly) before performing this work.
- Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tank pressure sensor (vapor pressure sensor assembly) has an O-ring that seals the fuel suction plate sub-assembly.
- Perform this work by hand. Do not use any tools.
- If the fuel suction plate sub-assembly and fuel tank pressure sensor (vapor pressure sensor assembly) are stuck, carefully wiggle or push and pull the fuel tank pressure sensor (vapor pressure sensor assembly) to release it. Pull the fuel tank pressure sensor (vapor pressure sensor assembly) off the fuel suction plate sub-assembly carefully.
- Disconnect the fuel tank pressure sensor (vapor pressure sensor assembly) connector.
