Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  2. REMOVE FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR ASSEMBLY)

    Refer to PROCEDURE - Step 2

  3. REMOVE FUEL SENDER GAUGE ASSEMBLY

    See step  2

  4. REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY

    See step  3

  5. DISCONNECT FUEL PUMP HARNESS

    See step  4

  6. REMOVE NO. 2 FUEL SUCTION SUPPORT

    See step  5

  7. REMOVE FUEL PUMP CUSHION RUBBER

    See step  6

  8. REMOVE FUEL PUMP FILTER

    See step  7

  9. REMOVE FUEL MAIN VALVE ASSEMBLY

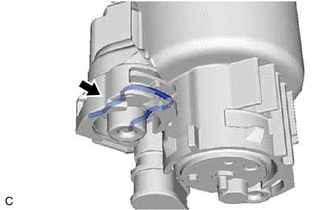

    1. GTY657307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for Low Pressure).

      1. Remove the clip from the fuel filter assembly.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter assembly.

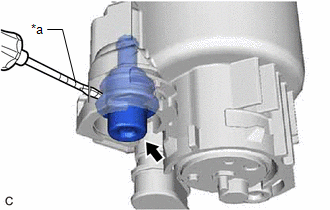

        GTY664039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        NOTE:
        • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter assembly.
        • Do not damage the fuel filter assembly.
      3. Remove the 2 O-rings from the fuel main valve assembly.
        GTY652718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring

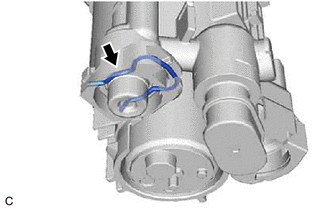

    2. GTY657304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for High Pressure).

      1. Remove the clip from the fuel filter assembly.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter assembly.

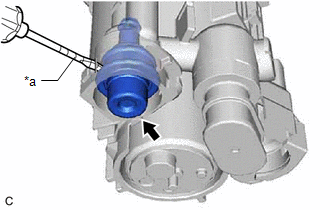

        GTY618663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        NOTE:
        • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter assembly.
        • Do not damage the fuel filter assembly.
      3. Remove the 2 O-rings from the fuel main valve assembly.
        GTY652718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring
